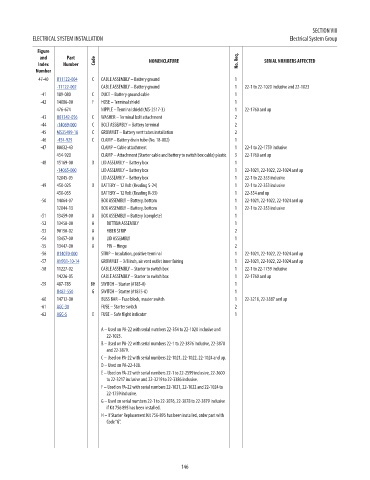

SECTION VIII
            ELECTRICAL SYSTEM INSTALLATION                                                       Electrical System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              47-40  U11122-004  C  CABLE ASSEMBLY – Battery ground            1                                                  37.85
                    -11122-002    CABLE ASSEMBLY – Battery ground              1  22-1 to 22-1020 inclusive and 22-1023           30.08
              -41   189-080    C  DUCT – Battery ground cable                  1                                                  NM!
              -42   14086-00    F  HOSE – Terminal shield                      1                                                  NM!
                    476-674       NIPPLE – Terminal shield (MS-2517-3)         1  22-1760 and up                                  NM!
              -43   U81342-056  C  WASHER – Terminal bolt attachment           2                                                  4.42
              -44   -14069-000  C  BOLT ASSEMBLY – Battery terminal            2                                                  43.56
              -45   MS35489-18  C  GROMMET – Battery vent tubes installation   2                                                  4.04
              -46   -454-925   C  CLAMP – Battery drain tube (No. 18-882)      1                                                  13.34
              -47   80032-43      CLAMP – Cable attachment                     1  22-1 to 22-1759 inclusive                       NM!
                    454-920       CLAMP – Attachment (Starter cable and battery to switch box cable) plastic  3  22-1760 and up   NM!
              -48   15169-00   D  LID ASSEMBLY – Battery box                   1                                                  NM!
                    -14065-000    LID ASSEMBLY – Battery box                   1  22-1021, 22-1022, 22-1024 and up                282.39
                    12045-05      LID ASSEMBLY – Battery box                   1  22-1 to 22-353 inclusive                        NM!
              -49   450-025    D  BATTERY – 12 Volt (Reading S-24)             1  22-1 to 22-353 inclusive                        NM!
                    450-035       BATTERY – 12 Volt (Reading R-33)             1  22-354 and up                                   NM!
              -50   14064-07      BOX ASSEMBLY – Battery, bottom               1  22-1021, 22-1022, 22-1024 and up                NM!
                    12044-13      BOX ASSEMBLY – Battery, bottom               1  22-1 to 22-353 inclusive                        NM!
              -51   13459-00   A  BOX ASSEMBLY – Battery (complete)            1                                                  NM!
              -52   13458-00   A    BOTTOM ASSEMBLY                            1                                                  NM!
              -53   90150-02   A    FIBER STRIP                                2                                                  NM!
              -54   13457-00   A    LID ASSEMBLY                               1                                                  NM!
              -55   13447-00   A    PIN – Hinge                                2                                                  NM!
              -56   U14070-000    STRIP – Insulation, positive terminal        1  22-1021, 22-1022, 22-1024 and up                52.07
              -57   AN931-10-14   GROMMET – 3/8 inch, air vent outlet inner fairing  1  22-1021, 22-1022, 22-1024 and up          2
              -58   11227-02      CABLE ASSEMBLY – Starter to switch box       1  22-1 to 22-1759 inclusive                       NM!
                    14226-05      CABLE ASSEMBLY – Starter to switch box       1  22-1760 and up                                  NM!
              -59   487-785    BH  SWITCH – Starter (#185-0)                   1                                                  NM!
                    U487-550   G  SWITCH – Starter (#1875-0)                   1                                                  65.84
              -60   14712-00      BUSS BAR – Fuse block, master switch         1  22-3218, 22-3387 and up                         NM!
              -61   AGC-30        FUSE – Starter switch                        2                                                  1.42
              -62   AGC-5      E  FUSE – Safe flight indicator                 1                                                  1.39
                                                                                                                                  X
                                  A – Used on PA-22 with serial numbers 22-354 to 22-1020 inclusive and                           X
                                    22-1023.
                                  B – Used on PA-22 with serial numbers 22-1 to 22-3876 inclusive, 22-3878                        X
                                    and 22-3879.
                                  C – Used on PA-22 with serial numbers 22-1021, 22-1022, 22-1024 and up.                         X
                                  D – Used on PA-22-108.                                                                          X
                                  E – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600                        X
                                    to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  F – Used on PA-22 with serial numbers 22-1021, 22-1022 and 22-1024 to                           X
                                    22-1759 inclusive.
                                  G – Used on serial numbers 22-1 to 22-3076, 22-3878 to 22-3879 inclusive                        X
                                    if Kit 756 895 has been installed.
                                  H – If Starter Replacement Kit 756-895 has been installed, order part with                      X
                                    Code “G”.
                                                                                                                                  X
                                                                                                                                  X
                                                                                                                                  X



                                                             146
