DISC BRAKE INSTALLATION SECTION VII
(See Serial Nos. Below) Brake Installation Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
46A- 15173 DRAWING – Landing Gear Installation NM!
-1 030-01800 BRAKE ASSEMBLY 2 1380.05
-2 091-00701 CYLINDER – Brake 1 0
-3 062-00300 PISTON 1 112.78
-4 MS28775-218 PACKING – “O” Ring 1 0.84
-5 069-00400 BOLT – Anchor 2 47.02
-6 MS21083N6 NUT 2 1.05
-7 NAS1149F0632P WASHER 2 0.06
-8 079-00300 SCREW – Bleeder 1 19.43
-9 081-00200 SEAT – Bleeder 1 35.99
-10 MS20822-4D TUBE FITTING 1 20
-11 183-00100 CAP – Bleeder 1 5.65
-12 073-00300 PLATE ASSEMBLY – Pressure 1 187.96
-13 063-00500 PLATE – Pressure 1 219.16
-14 066-10600 LINING 1 16.1
-15 105-00200 RIVET 3 0.84
-16 074-00200 PLATE ASSEMBLY – Back 1 270.43
-17 064-00500 PLATE – Back 1 199.14
-18 066-10600 LINING 1 16.1
-19 105-00200 RIVET 3 0.84
-20 756-127 SHIM – (68-4) 1 NM!
-21 AN4H15A BOLT 2 1.5
-22 NAS1149F0432P WASHER 2 0.04
-23 075-01600 TORQUE PLATE ASSEMBLY 1 467.52

16
17
18 12
20 23
14
13 10
5
2
7 6

3
4

19 22
21

15
8

AIRCRAFT SERIAL NOS. 11 9
22-8270, 22-8289, 22-8291,
22-8293, 22-8298, 22-8304, 1
22-8305, 22-8307, 22-8318,
22-8334, 22-8455, 22-8457 AND UP

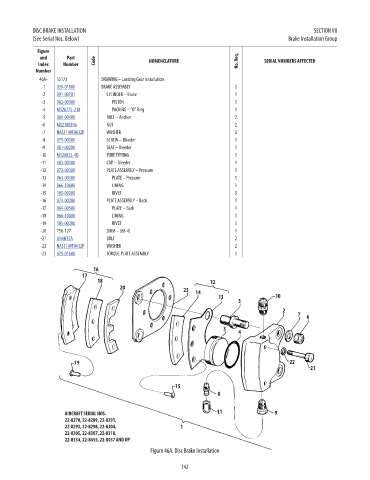

Figure 46A. Disc Brake Installation
