P. 151

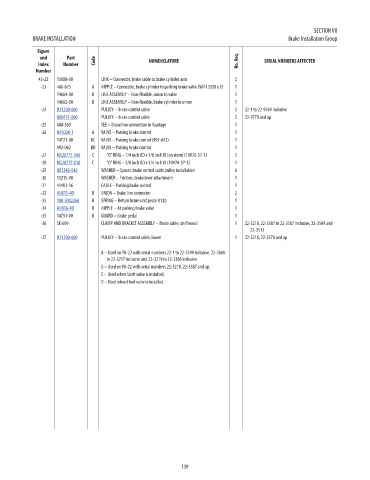

SECTION VII
            BRAKE INSTALLATION                                                                  Brake Installation Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              45-22  13080-00     LINK – Connector, brake cable to brake cylinder arm  2                                          NM!
              -23   460-675    A  NIPPLE – Connector, brake cylinder to parking brake valve (W/H 3328 x 2)  1                     NM!
                    14664-00   B  LINE ASSEMBLY – Non-flexible, union to valve  1                                                 NM!
                    14662-00   B  LINE ASSEMBLY – Non-flexible, brake cylinder to union  1                                        NM!
              -24   U11200-000    PULLEY – Brake control cable                 2  22-1 to 22-9769 inclusive                       15.2
                    U80421-000    PULLEY – Brake control cable                 2  22-9770 and up                                  12.37
              -25   488-369       TEE – Brake line connection in fuselage      1                                                  NM!
              -26   U4500A-1   A  VALVE – Parking brake control                1                                                  451.41
                    14721-00   BC  VALVE – Parking brake control (492-042)     1                                                  NM!
                    492-062    BD  VALVE – Parking brake control               1                                                  NM!
              -27   MS28775-006  C    “O” RING – 1/4 inch OD x 1/8 inch ID (on stern) (10V70-57-1)  1                             0.6
              -28   MS28775-010  C    “O” RING – 3/8 inch OD x 1/4 inch ID (10V70-57-5)  1                                        0.3
              -29   U81342-042    WASHER – Spacer, brake control cable pulley installation  6                                     3.14
              -30   13215-00      WASHER – Friction, brake lever attachment    1                                                  NM!
              -31   41481-16      CABLE – Parking brake control                1                                                  NM!
              -32   AN815-4D   B  UNION – Brake line connector                 2                                                  4.58
              -33   108-3002268  B  SPRING – Return brake unit pedal #120      1                                                  44.89
              -34   AN816-4D   B  NIPPLE – At parking brake valve              1                                                  5
              -35   14751-00   B  GUARD – Brake pedal                          1                                                  NM!
              -36   SK-699        CLAMP AND BRACKET ASSEMBLY – Brake cable, on firewall  1  22-3218, 22-3387 to 22-3507 inclusive, 22-3509 and   NM!
                                                                                    22-3513
              -37   U11200-000    PULLEY – Brake control cable, lower          1  22-3218, 22-3378 and up                         15.2

                                  A – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
                                    to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  B – Used on PA-22 with serial numbers 22-3218, 22-3387 and up.
                                  C – Used when Scott valve is installed.
                                  D – Used when Hoof valve is installed.
