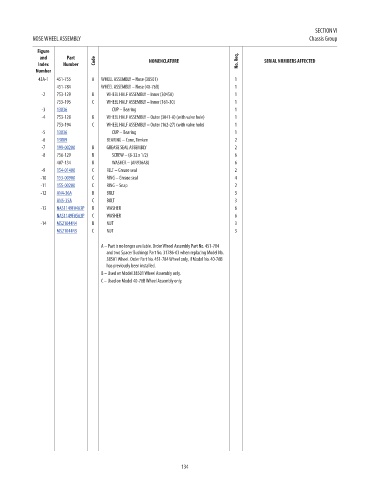

SECTION VI
NOSE WHEEL ASSEMBLY Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
43A-1 451-755 A WHEEL ASSEMBLY – Nose (38501) 1 NM!
451-784 WHEEL ASSEMBLY – Nose (40-76B) 1 NM!
-2 753-129 B WHEEL HALF ASSEMBLY – Inner (3045A) 1 NM!
753-195 C WHEEL HALF ASSEMBLY – Inner (161-30) 1 NM!
-3 13836 CUP – Bearing 1 36.98
-4 753-128 B WHEEL HALF ASSEMBLY – Outer (3041-A) (with valve hole) 1 NM!
753-194 C WHEEL HALF ASSEMBLY – Outer (162-27) (with valve hole) 1 NM!
-5 13836 CUP – Bearing 1 36.98
-6 13889 BEARING – Cone, Timken 2 77.98
-7 199-00200 B GREASE SEAL ASSEMBLY 2 56.55
-8 756-129 B SCREW – (8-32 x 1/2) 6 NM!
407-134 B WASHER – (AN936A8) 6 NM!
-9 154-01400 C FELT – Grease seal 2 12.58
-10 153-00900 C RING – Grease seal 4 23.03
-11 155-00200 C RING – Snap 2 24.06
-12 AN4-36A B BOLT 3 0.88
AN5-35A C BOLT 3 1.56
-13 NAS1149F0463P B WASHER 6 0.06
NAS1149F0563P C WASHER 6 0.08
-14 MS21044N4 B NUT 3 0.3
MS21044N5 C NUT 3 0.4

A – Part is no longer available. Order Wheel Assembly Part No. 451-784
and two Spacer Bushings Part No. 31786-03 when replacing Model No.
38501 Wheel. Order Part No. 451-784 Wheel only, if Model No. 40-76B
has previously been installed.
B – Used on Model 38501 Wheel Assembly only.
C – Used on Model 40-76B Wheel Assembly only.

134
