P. 142

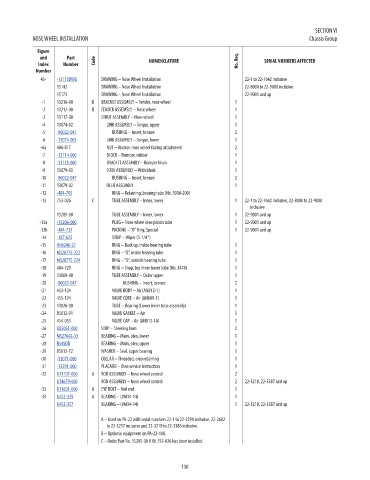

SECTION VI
            NOSE WHEEL INSTALLATION                                                                    Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              43-   -13113DWG     DRAWING – Nose Wheel Installation               22-1 to 22-7642 inclusive                       65.97
                    15142         DRAWING – Nose Wheel Installation               22-8000 to 22-9000 inclusive                    NM!
                    15173         DRAWING – Nose Wheel Installation               22-9001 and up                                  NM!
               -1   13216-00   B  BRACKET ASSEMBLY – Fender, nose wheel        1                                                  NM!
               -2   13217-00   B  FENDER ASSEMBLY – Nose wheel                 1                                                  NM!
               -3   13117-00      STRUT ASSEMBLY – Nose wheel                  1                                                  NM!
               -4   13074-02        LINK ASSEMBLY – Torque, upper              1                                                  NM!
               -5   -80022-047        BUSHING – Insert, bronze                 2                                                  3.88
               -6   -13074-003      LINK ASSEMBLY – Torque, lower              1                                                  314.18
              -6a   406-817         NUT – Anchor, nose wheel fairing attachment  2                                                NM!
               -7   -13114-000      BLOCK – Bumper, rubber                     1                                                  29.7
               -8   -13115-000      BRACKET ASSEMBLY – Bumper block            1                                                  83.19
               -9   13079-03        FORK ASSEMBLY – With block                 1                                                  NM!
              -10   -80022-047        BUSHING – Insert, bronze                 2                                                  3.88
              -11   13079-02        OLEO ASSEMBLY                              1                                                  NM!
              -12   -484-705          RING – Retaining, bearing tube (No. 5000-200)                                               24.9
              -13   753-026    C      TUBE ASSEMBLY – Inner, lower             1  22-1 to 22-7642 inclusive, 22-8000 to 22-9000   NM!
                                                                                    inclusive
                    15205-00          TUBE ASSEMBLY – Inner, lower             1  22-9001 and up                                  NM!
              -13a  -15206-000        PLUG – Nose wheel oleo piston tube       1  22-9001 and up                                  170.79
              -13b  -484-733          PACKING – “O” Ring, Special              1  22-9001 and up                                  3.76
              -14   -187-625          STRIP – Wiper (5-1/4 “)                                                                     15.5
              -15   AN6246-27         RING – Back up, inside bearing tube      1                                                  6.02
              -16   MS28775-222       RING – “O”, inside bearing tube          1                                                  1.06
              -17   MS28775-224       RING – “O”, outside bearing tube         1                                                  1.18
              -18   484-720           RING – Snap, top inner lower tube (No. 3478)  1                                             NM!
              -19   13069-00          TUBE ASSEMBLY – Outer upper              1                                                  NM!
              -20   -80022-047            BUSHING – Insert, bronze             2                                                  3.88
              -21   453-124           VALVE BODY – Air (AN812-1)               1                                                  NM!
              -22   455-124           VALVE CORE – Air (AN809-1)               1                                                  NM!
              -23   13026-00          TUBE – Bearing (Lower inner tube assembly)  1                                               NM!
              -24   85012-91          VALVE GASKET – Air                       1                                                  NM!
              -25   454-053           VALVE CAP – Air (AN813-1A)               1                                                  NM!
              -26   U85061-000    STOP – Steering horn                         2                                                  11.63
              -27   MS27642-33    BEARING – Main, oleo, lower                  1                                                  138.4
              -28   B545DD        BEARING – Main, oleo, upper                  1                                                  117.8
              -29   85012-72      WASHER – Seal, upper bearing                 1                                                  NM!
              -30   -13071-000    COLLAR – Threaded, oleo retaining            1                                                  87.1
              -31   -13291-000    PLACARD – Oleo service instruction           1                                                  14.5
              -32   U13107-000  A  ROD ASSEMBLY – Nose wheel control           2                                                  376.21
                    U14679-000    ROD ASSEMBLY – Nose wheel control            2  22-3218, 22-3387 and up                         549.88
              -33   U11601-000  A  EYE BOLT – Rod end                          1                                                  56.63
              -34   U452-335   A  BEARING – (#M34-14)                          1                                                  46.92
                    U452-357      BEARING – (#M34-14)                          1  22-3218, 22-3387 and up                         63.15

                                  A – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2602
                                    to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  B – Optional equipment on PA-22-108.
                                  C – Order Part No. 15205-00 if Kit 753-026 has been installed.




                                                             130
