P. 143

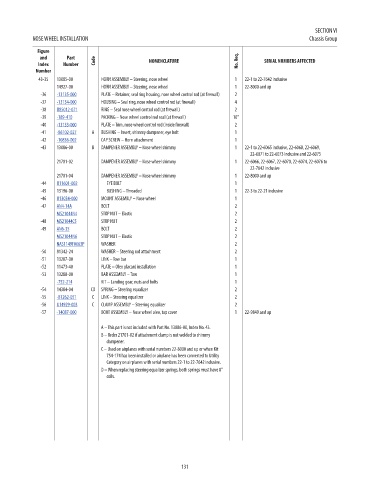

SECTION VI
            NOSE WHEEL INSTALLATION                                                                    Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              43-35  13085-00     HORN ASSEMBLY – Steering, nose wheel         1  22-1 to 22-7642 inclusive                       NM!
                    14927-00      HORN ASSEMBLY – Steering, nose wheel         1  22-8000 and up                                  NM!
              -36   -13135-000    PLATE – Retainer, seal ring housing, nose wheel control rod (at firewall)  2                    25.63
              -37   -13134-000    HOUSING – Seal ring, nose wheel control rod (at firewall)  4                                    41.59
              -38   U85012-071    RING – Seal nose wheel control rod (at firewall)  2                                             11.14
              -39   -189-410      PACKING – Nose wheel control rod seal (at firewall)  10”                                        9.75
              -40   -13133-000    PLATE – Trim, nose wheel control rod (inside firewall)  2                                       45.1
              -41   -86102-027  A  BUSHING – Insert, shimmy dampener, eye bolt  1                                                 4.5
              -42   -10836-002    CAP SCREW – Horn attachment                  1                                                  1.84
              -43   13086-00   B  DAMPENER ASSEMBLY – Nose wheel shimmy        1  22-1 to 22-6065 inclusive, 22-6068, 22-6069,    NM!
                                                                                    22-6071 to 22-6073 inclusive and 22-6075
                    21701-02      DAMPENER ASSEMBLY – Nose wheel shimmy        1  22-6066, 22-6067, 22-6070, 22-6074, 22-6076 to   NM!
                                                                                    22-7642 inclusive
                    21701-04      DAMPENER ASSEMBLY – Nose wheel shimmy        1  22-8000 and up                                  NM!
              -44   U11601-002      EYE BOLT                                   1                                                  100.7
              -45   13196-00        BUSHING – Threaded                         1  22-3 to 22-21 inclusive                         NM!
              -46   U13034-000    MOUNT ASSEMBLY – Nose wheel                  1                                                  2154.75
              -47   AN4-14A       BOLT                                         2                                                  0.3
                    MS21044N4     STOP NUT – Elastic                           2                                                  0.3
              -48   MS21044C5     STOP NUT                                     2                                                  0.64
              -49   AN6-35        BOLT                                         2                                                  2
                    MS21044N6     STOP NUT – Elastic                           2                                                  0.58
                    NAS1149F0663P  WASHER                                      2                                                  0.11
              -50   81342-24      WASHER – Steering rod attachment             2                                                  NM!
              -51   13287-00      LINK – Tow bar                               1                                                  NM!
              -52   11473-40      PLATE – Oleo placard installation            1                                                  NM!
              -53   13288-00      BAR ASSEMBLY – Tow                           1                                                  NM!
                    -752-214      KIT – Landing gear, nuts and bolts           1                                                  138.14
              -54   14384-04   CD  SPRING – Steering equalizer                 2                                                  NM!
              -55   -81262-051  C  LINK – Steering equalizer                   2                                                  31.04
              -56   U14929-003  C  CLAMP ASSEMBLY – Steering equalizer         2                                                  49.23
              -57   -14087-000    BOOT ASSEMBLY – Nose wheel oleo, top cover   1  22-9849 and up                                  13.59

                                  A – This part is not included with Part No. 13086-00, Index No. 43.
                                  B – Order 21701-02 if attachment clamp is not welded to shimmy
                                    dampener.
                                  C – Used on airplanes with serial numbers 22-8000 and up or when Kit
                                    754-174 has been installed or airplane has been converted to Utility
                                    Category on airplanes with serial numbers 22-1 to 22-7642 inclusive.
                                  D – When replacing steering equalizer springs, both springs must have 8”
                                    coils.

















                                                             131
