P. 139

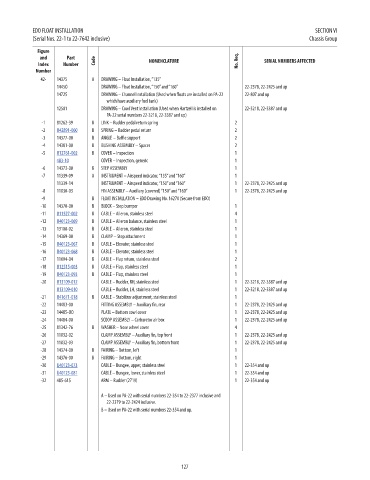

EDO FLOAT INSTALLATION                                                                       SECTION VI
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                    Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              42-   14375      A  DRAWING – Float Installation, “135”                                                             NM!
                    1445O         DRAWING – Float Installation, “150” and “160”   22-2378, 22-2425 and up                         NM!
                    14725         DRAWING – Channel Installation (Used when floats are installed on PA-22   22-807 and up         NM!
                                    which have auxiliary fuel tank)
                    12501         DRAWING – Cowl Vent Installation (Used when Hartzell is installed on    22-3218, 22-3387 and up  NM!
                                    PA-22 serial numbers 22-3218, 22-3387 and up)
               -1   81262-39   B  LINK – Rudder pedal return spring            2                                                  NM!
               -2   U42891-000  B  SPRING – Rudder pedal return                2                                                  7.53
               -3   14377-00   B  ANGLE – Baffle support                       2                                                  NM!
               -4   14381-00   B  BUSHING ASSEMBLY – Spacer                    2                                                  NM!
               -5   U12761-002  B  COVER – Inspection                          1                                                  46.86
                    483-10        COVER – Inspection, generic                  1                                                  2.25
               -6   14373-00   B  STEP ASSEMBLY                                1                                                  NM!
               -7   11339-09   A  INSTRUMENT – Airspeed indicator, “135” and “160”  1                                             NM!
                    11339-14      INSTRUMENT – Airspeed indicator, “150” and “160”  1  22-2378, 22-2425 and up                    NM!
               -8   11030-03      FIN ASSEMBLY – Auxiliary (covered) “150” and “160”  1  22-2378, 22-2425 and up                  NM!
               -9              B  FLOAT INSTALLATION – EDO Drawing No. 16270 (Secure from EDO)
              -10   14370-00   B  BLOCK – Step bumper                          1                                                  NM!
              -11   U11527-002  B  CABLE – Aileron, stainless steel            4                                                  157.82
              -12   U40123-069  B  CABLE – Aileron balance, stainless steel    1                                                  162.74
              -13   13108-02   B  CABLE – Aileron, stainless steel             1                                                  NM!
              -14   14369-00   B  CLAMP – Step attachment                      1                                                  NM!
              -15   U40123-067  B  CABLE – Elevator, stainless steel           1                                                  143.78
              -16   U40123-068  B  CABLE – Elevator, stainless steel           1                                                  142.45
              -17   11694-04   B  CABLE – Flap return, stainless steel         2                                                  NM!
              -18   U12515-003  B  CABLE – Flap, stainless steel               1                                                  202.5
              -19   U40123-093  B  CABLE – Flap, stainless steel               1                                                  144.92
              -20   U13109-012    CABLE – Rudder, RH, stainless steel          1  22-3218, 22-3387 and up                         181.02
                    U13109-010    CABLE – Rudder, LH, stainless steel          1  22-3218, 22-3387 and up                         181.02
              -21   U41671-018  B  CABLE – Stabilizer adjustment, stainless steel  1                                              297.52
              -22   14483-00      FITTING ASSEMBLY – Auxiliary fin, rear       1  22-2378, 22-2425 and up                         NM!
              -23   14485-OO      PLATE – Bottom cowl cover                    1  22-2378, 22-2425 and up                         NM!
              -24   14484-00      SCOOP ASSEMBLY – Carburetor air box          1  22-2378, 22-2425 and up                         NM!
              -25   81342-76   B  WASHER – Nose wheel cover                    4                                                  NM!
              -26   11032-02      CLAMP ASSEMBLY – Auxiliary fin, top front    1  22-2378, 22-2425 and up                         NM!
              -27   11032-03      CLAMP ASSEMBLY – Auxiliary fin, bottom front  1  22-2378, 22-2425 and up                        NM!
              -28   14374-00   B  FAIRING – Bottom, left                       1                                                  NM!
              -29   14376-00   B  FAIRING – Bottom, right                      1                                                  NM!
              -30   U40123-073    CABLE – Bungee, upper, stainless steel       1  22-354 and up                                   57.73
              -31   U40123-081    CABLE – Bungee, lower, stainless steel       1  22-354 and up                                   57.73
              -32   485-615       ARM – Rudder (2719)                          1  22-354 and up                                   NM!

                                  A – Used on PA-22 with serial numbers 22-354 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Used on PA-22 with serial numbers 22-354 and up.










                                                             127
