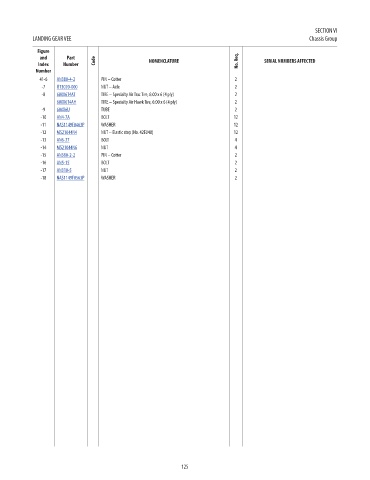

SECTION VI
LANDING GEAR VEE Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
41-6 AN380-4-2 PIN – Cotter 2 0.32
-7 U13020-000 NUT – Axle 2 82.21
-8 600X6T4AT TIRE – Specialty Air Trac Tire, 6:00 x 6 (4 ply) 2 110.46
600X6T4AH TIRE – Specialty Air Hawk Tire, 6:00 x 6 (4 ply) 2
-9 600X6U TUBE 2 91.73
-10 AN4-7A BOLT 12 0.18
-11 NAS1149F0463P WASHER 12 0.06
-12 MS21044N4 NUT – Elastic stop (No. 42E048) 12 0.3
-13 AN6-27 B0LT 4 1.46
-14 MS21044N6 NUT 4 0.58
-15 AN380-2-2 PIN – Cotter 2 0.04
-16 AN5-15 BOLT 2 0.96
-17 AN310-5 NUT 2 2
-18 NAS1149F0563P WASHER 2 0.08

125
