P. 133

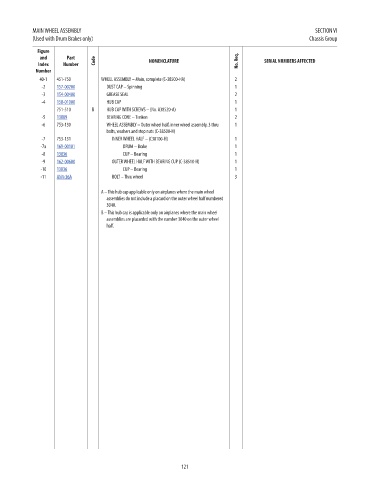

MAIN WHEEL ASSEMBLY                                                                          SECTION VI
            (Used with Drum Brakes only)                                                               Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              40-1  451-750       WHEEL ASSEMBLY – Main, complete (C-38500-HA)  2                                                 NM!
               -2   157-00200       DUST CAP – Spinning                        1                                                  208.83
               -3   154-00400       GREASE SEAL                                2                                                  27.87
               -4   158-01000       HUB CAP                                    1                                                  497.68
                    751-510    B    HUB CAP WITH SCREWS – (No. A38520-A)       1                                                  NM!
               -5   13889           BEARING CONE – Timken                      2                                                  77.98
               -6   753-130         WHEEL ASSEMBLY – Outer wheel half, inner wheel assembly, 3 thru   1                           NM!
                                    bolts, washers and stop nuts (C-38500-H)
               -7   753-131           INNER WHEEL HALF – (C38100-H)            1                                                  NM!
              -7a   169-00101             DRUM – Brake                         1                                                  3991.71
               -8   13836                 CUP – Bearing                        1                                                  36.98
               -9   162-00600         OUTER WHEEL HALF WITH BEARING CUP (C-38510-H)  1                                            1036.61
              -10   13836                 CUP – Bearing                        1                                                  36.98
              -11   AN4-36A           BOLT – Thru wheel                        3                                                  0.88

                                  A – This hub cap applicable only on airplanes where the main wheel
                                    assemblies do not include a placard on the outer wheel half numbered
                                    3040.
                                  B – This hub cap is applicable only on airplanes where the main wheel
                                    assemblies are placarded with the number 3040 on the outer wheel
                                    half.
















































                                                             121
