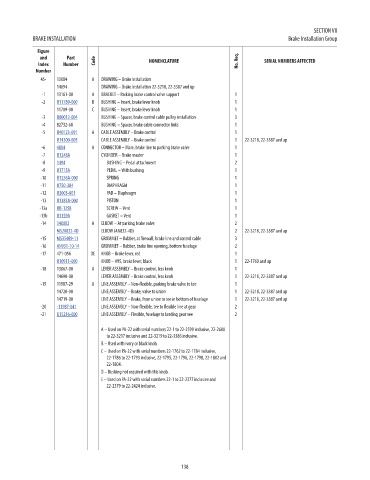

Page 150 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION VII
BRAKE INSTALLATION Brake Installation Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
45- 13084 A DRAWING – Brake Installation NM!
14694 DRAWING – Brake Installation 22-3218, 22-3387 and up NM!
-1 13161-00 A BRACKET – Parking brake control valve support 1 NM!
-2 U11789-000 B BUSHING – Insert, brake lever knob 1 17.62
11709-00 C BUSHING – Insert, brake lever knob 1 NM!
-3 U80012-004 BUSHING – Spacer, brake control cable pulley installation 3 7.45
-4 82732-68 BUSHING – Spacer, brake cable connector links 1 NM!
-5 U40123-091 A CABLE ASSEMBLY – Brake control 1 79.18
U14300-005 CABLE ASSEMBLY – Brake control 1 22-3218, 22-3387 and up 100.88
-6 48X4 A CONNECTOR – Male, brake line to parking brake valve 1 5.55
-7 U1248A CYLINDER – Brake master 1 1355.04
-8 1494 BUSHING – Pedal attachment 2 3.8
-9 U1715A PEDAL – With bushing 1 235.45
-10 U1256A-000 SPRING 1 18.39
-11 U750-384 DIAPHRAGM 1 43.81
-12 U2003-001 PAD – Diaphragm 1 40.68
-13 U1383A-000 PISTON 1 69.61
-13a UB-1258 SCREW – Vent 1 16.21
-13b U1159A GASKET – Vent 1 3.35
-14 3400X2 A ELBOW – At parking brake valve 2 2.93
MS20822-4D ELBOW (AN822-4D) 2 22-3218, 22-3387 and up 20
-15 MS35489-11 GROMMET – Rubber, at firewall, brake line and control cable 3 0.6
-16 AN931-10-14 GROMMET – Rubber, brake line opening, bottom fuselage 2 2
-17 471-056 DE KNOB – Brake lever, red 1 NM!
U10911-000 KNOB – #95, brake lever, black 1 22-1760 and up 12.44
-18 13067-00 A LEVER ASSEMBLY – Brake control, less knob 1 NM!
14690-00 LEVER ASSEMBLY – Brake control, less knob 1 22-3218, 22-3387 and up NM!
-19 11987-29 A LINE ASSEMBLY – Non-flexible, parking brake valve to tee 1 NM!
14720-00 LINE ASSEMBLY – Brake, valve to union 1 22-3218, 22-3387 and up NM!
14719-00 LINE ASSEMBLY – Brake, from union to tee in bottom of fuselage 1 22-3218, 22-3387 and up NM!
-20 -11987-041 LINE ASSEMBLY – Non-flexible, tee to flexible line at gear 2 47.2
-21 U15216-000 LINE ASSEMBLY – Flexible, fuselage to landing gear vee 2 305.42

A – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
B – Used with ivory or black knob.
C – Used on PA-22 with serial numbers 22-1762 to 22-1784 inclusive,
22-1786 to 22-1793 inclusive, 22-1795, 22-1796, 22-1798, 22-1802 and
22-1804.
D – Bushing not required with this knob.
E – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.

138
