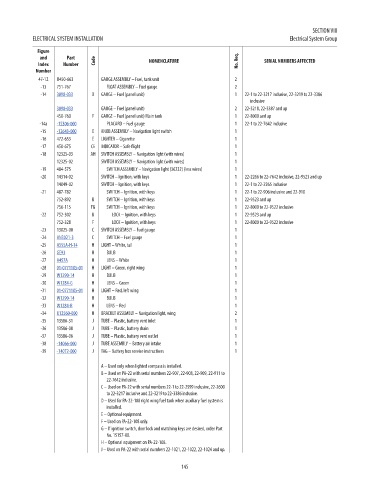

P. 157

SECTION VIII
            ELECTRICAL SYSTEM INSTALLATION                                                       Electrical System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              47-12  U450-663     GAUGE ASSEMBLY – Fuel, tank unit             2                                                  NM!
              -13   751-767         FLOAT ASSEMBLY – Fuel gauge                2                                                  NM!
              -14   3090-033   D  GAUGE – Fuel (panel unit)                    1  22-1 to 22-3217 inclusive, 22-3219 to 22-3386   237.42
                                                                                    inclusive
                    3090-033      GAUGE – Fuel (panel unit)                    2  22-3218, 22-3387 and up                         237.42
                    450-760     F  GAUGE – Fuel (panel unit) Main tank         1  22-8000 and up                                  NM!
              -14a  -15306-000      PLACARD – Fuel gauge                       1  22-1 to 22-7642 inclusive                       11.55
              -15   -12643-000  E  KNOB ASSEMBLY – Navigation light switch     1                                                  31.01
              -16   472-653    E  LIGHTER – Cigarette                          1                                                  NM!
              -17   450-675    CE  INDICATOR – Safe flight                     1                                                  NM!
              -18   12325-03   AH  SWITCH ASSEMBLY – Navigation light (with wires)  1                                             NM!
                    12325-02      SWITCH ASSEMBLY – Navigation light (with wires)  1                                              NM!
              -19   484-575         SWITCH ASSEMBLY – Navigation light (36232) (less wires)  1                                    NM!
              -20   14314-02      SWITCH – Ignition, with keys                 1  22-2266 to 22-7642 inclusive, 22-9523 and up    NM!
                    14049-02      SWITCH – Ignition, with keys                 1  22-1 to 22-2265 inclusive                       NM!
              -21   487-782         SWITCH – Ignition, with keys               1  22-1 to 22-906 inclusive and 22-910             NM!
                    752-892    B    SWITCH – Ignition, with keys               1  22-9523 and up                                  NM!
                    756-115    FG    SWITCH – Ignition, with keys              1  22-8000 to 22-9522 inclusive                    NM!
              -22   752-302    B      LOCK – Ignition, with keys               1  22-9523 and up                                  NM!
                    752-328     F      LOCK – Ignition, with keys              1  22-8000 to 22-9522 inclusive                    NM!
              -23   13025-00   C  SWITCH ASSEMBLY – Fuel gauge                 1                                                  NM!
              -24   AN3021-3   C    SWITCH – Fuel gauge                        1                                                  29.75
              -25   A555A-H-14  H  LIGHT – White, tail                         1                                                  257.4
              -26   GE93       H    BULB                                       1                                                  4.2
              -27   A457A      H    LENS – White                               1                                                  66.3
              -28   01-0771105-01  H  LIGHT – Green, right wing                1                                                  311.22
              -29   W1290-14   H    BULB                                       1                                                  95.16
              -30   W1284-G    H    LENS – Green                               1                                                  81.9
              -31   01-0771105-01  H  LIGHT – Red, left wing                   1                                                  311.22
              -32   W1290-14   H    BULB                                       1                                                  95.16
              -33   W1284-R    H    LENS – Red                                 1                                                  81.9
              -34   U12560-000  H  BRACKET ASSEMBLY – Navigation light, wing   2                                                  137.64
              -35   13586-31    J  TUBE – Plastic, battery vent inlet          1                                                  NM!
              -36   13586-08    J  TUBE – Plastic, battery drain               1                                                  NM!
              -37   13586-06    J  TUBE – Plastic, battery vent outlet         1                                                  NM!
              -38   -14066-000  J  TUBE ASSEMBLY – Battery air intake          1                                                  84.02
              -39   -14072-000  J  TAG – Battery box service instructions      1                                                  2.54

                                  A – Used only when lighted compass is installed.
                                  B – Used on PA-22 with serial numbers 22-907, 22-908, 22-909, 22-911 to
                                    22-7642 inclusive.
                                  C – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
                                    to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  D – Used for PA-22-108 right wing fuel tank when auxiliary fuel system is
                                    installed.
                                  E – Optional equipment.
                                  F – Used on PA-22-108 only.
                                  G – If ignition switch, door lock and matching keys are desired, order Part
                                    No. 15157-00.
                                  H – Optional equipment on PA-22-108.
                                  J – Used on PA-22 with serial numbers 22-1021, 22-1022, 22-1024 and up.


                                                             145
