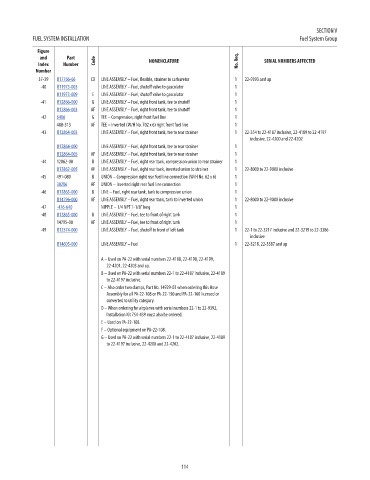

P. 126

SECTION V
            FUEL SYSTEM INSTALLATION                                                                Fuel System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              37-39  U17766-66  CD  LINE ASSEMBLY – Fuel, flexible, strainer to carburetor  1  22-9393 and up                     182.91
              -40   U11973-003    LINE ASSEMBLY – Fuel, shutoff valve to gascolator  1                                            127.6
                    U11973-009  E  LINE ASSEMBLY – Fuel, shutoff valve to gascolator  1                                           114.64
              -41   U12866-000  G   LINE ASSEMBLY – Fuel, right front tank, tee to shutoff  1                                     134.49
                    U12866-003  AF  LINE ASSEMBLY – Fuel, right front tank, tee to shutoff  1                                     134.49
              -42   64X6       G   TEE – Compression, right front fuel line    1                                                  3.4
                    488-313    AF  TEE – Inverted (W/H No. 702 x 6) right front fuel line  1                                      NM!
              -43   U12864-003    LINE ASSEMBLY – Fuel, right front tank, tee to rear strainer  1  22-354 to 22-4187 inclusive, 22-4189 to 22-4197   169.4
                                                                                    inclusive, 22-4200 and 22-4202
                    U12864-000    LINE ASSEMBLY – Fuel, right front tank, tee to rear strainer  1                                 141.4
                    U12864-005  AF  LINE ASSEMBLY – Fuel, right front tank, tee to rear strainer  1                               149.77
              -44   12862-00   B   LINE ASSEMBLY – Fuel, right rear tank, compression union to rear strainer  1                   NM!
                    U12862-005  AF  LINE ASSEMBLY – Fuel, right rear tank, inverted union to strainer  1  22-8000 to 22-9000 inclusive  225.63
              -45   491-080    B   UNION – Compression right rear fuel line connection (W/H No. 62 x 6)  1                        NM!
                    302X6      AF  UNION – Inverted right rear fuel line connection  1                                            7.04
              -46   U12863-000  B   LINE – Fuel, right rear tank, tank to compression union  1                                    69.1
                    U14796-000  AF  LINE ASSEMBLY – Fuel, right rear tank, tank to inverted union  1  22-8000 to 22-9000 inclusive  82.76
              -47   -476-640      NIPPLE – 1/4 NPT 1-1/8” long                 1                                                  7.15
              -48   U12865-000  B   LINE ASSEMBLY – Fuel, tee to front of right tank  1                                           55.34
                    14795-00   AF  LINE ASSEMBLY – Fuel, tee to front of right tank  1                                            NM!
              -49   U12574-000    LINE ASSEMBLY – Fuel, shutoff to front of left tank  1   22-1 to 22-3217 inclusive and 22-3219 to 22-3386   127.1
                                                                                    inclusive
                    U14605-000    LINE ASSEMBLY – Fuel                         1  22-3218, 22-3387 and up                         233.46

                                  A – Used on PA-22 with serial numbers 22-4188, 22-4198, 22-4199,
                                    22-4201, 22-4203 and up.
                                  B – Used on PA-22 with serial numbers 22-1 to 22-4187 inclusive, 22-4189
                                    to 22-4197 inclusive.
                                  C – Also order two clamps, Part No. 14929-03 when ordering this Hose
                                    Assembly for all PA-22-108 or PA-22-150 and PA-22-160 licensed or
                                    converted to utility category.
                                  D – When ordering for airplanes with serial numbers 22-1 to 22-9392,
                                    Installation Kit 754-439 must also be ordered.
                                  E – Used on PA-22-108.
                                  F – Optional equipment on PA-22-108.
                                  G – Used on PA-22 with serial numbers 22-1 to 22-4187 inclusive, 22-4189
                                    to 22-4197 inclusive, 22-4200 and 22-4202.
























                                                             114
