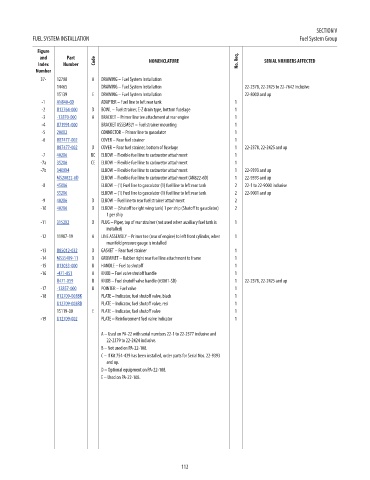

SECTION V
            FUEL SYSTEM INSTALLATION                                                                Fuel System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              37-   12708      A  DRAWING – Fuel System Installation                                                              NM!
                    14465         DRAWING – Fuel System Installation              22-2378, 22-2425 to 22-7642 inclusive           NM!
                    15139      E  DRAWING – Fuel System Installation              22-8000 and up                                  NM!
               -1   AN840-6D      ADAPTER – Fuel line to left rear tank        1                                                  11.96
               -2   U12764-000  D  BOWL – Fuel strainer, E-Z drain type, bottom fuselage  1                                       136.73
               -3   -12870-000  A  BRACKET – Primer line tee attachment at rear engine  1                                         22.61
               -4   U71991-000    BRACKET ASSEMBLY – Fuel strainer mounting    1                                                  77.83
               -5   200X2         CONNECTOR – Primer line to gascolator        1                                                  2.11
               -6   U87477-002    COVER – Rear fuel strainer                   1                                                  122.83
                    U87477-002  D  COVER – Rear fuel strainer, bottom of fuselage  1  22-2378, 22-2425 and up                     122.83
               -7   402X6      BC  ELBOW – Flexible fuel line to carburetor attachment  1                                         7.94
              -7a   352X6      CE  ELBOW – Flexible fuel line to carburetor attachment  1                                         7.83
              -7b   3400X4        ELBOW – Flexible fuel line to carburetor attachment  1  22-9393 and up                          7.4
                    MS20822-6D    ELBOW – Flexible fuel line to carburetor attachment (AN822-6D)  1  22-9393 and up               19
               -8   450X6         ELBOW – (1) Fuel line to gascolator (1) fuel line to left rear tank  2  22-1 to 22-9000 inclusive  6.85
                    352X6         ELBOW – (1) Fuel line to gascolator (1) fuel line to left rear tank  2  22-9001 and up          7.83
               -9   402X6      D  ELBOW – Fuel line to rear fuel strainer attachment  2                                           7.94
              -10   402X6      D  ELBOW – (Shutoff to right wing tank) 1 per ship (Shutoff to gascolator)   2                     7.94
                                    1 per ship
              -11   3152X2     D  PLUG – Piper, top of rear strainer (not used when auxiliary fuel tank is   1                    1.42
                                    installed)
              -12   11987-19   A  LINE ASSEMBLY – Primer tee (rear of engine) to left front cylinder, when   1                    NM!
                                    manifold pressure gauge is installed
              -13   U85012-032  D  GASKET – Rear fuel strainer                 1                                                  4.19
              -14   MS35489-11  D  GROMMET – Rubber right rear fuel line attachment to frame  1                                   0.6
              -15   U13033-000  B  HANDLE – Fuel to shutoff                    1                                                  16.3
              -16   -471-051   A  KNOB – Fuel valve shutoff handle             1                                                  2.19
                    U471-059   B  KNOB – Fuel shutoff valve handle (#3001-SD)  1  22-2378, 22-2425 and up                         4.13
              -17   -12857-000  B  POINTER – Fuel valve                        1                                                  9.53
              -18   U12709-003BK  PLATE – Indicator, fuel shutoff valve, black  1                                                 70.38
                    U12709-003RD  PLATE – Indicator, fuel shutoff valve, red   1                                                  70.38
                    15119-00   E  PLATE – Indicator, fuel shutoff valve        1                                                  NM!
              -19   U12709-002    PLATE – Reinforcement fuel valve indicator   1                                                  34.93

                                  A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Not used on PA-22-108.
                                  C – If Kit 754-439 has been installed, order parts for Serial Nos. 22-9393
                                    and up.
                                  D – Optional equipment on PA-22-108.
                                  E – Used on PA-22-108.
