P. 125

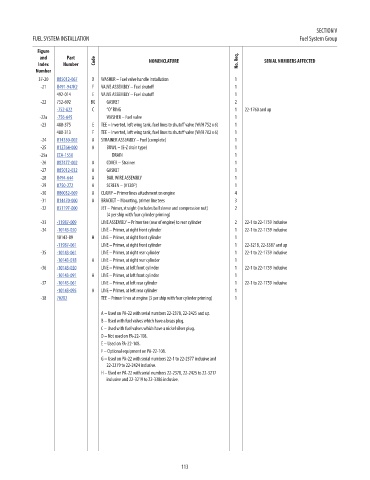

SECTION V
            FUEL SYSTEM INSTALLATION                                                                Fuel System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              37-20  U85012-067  D  WASHER – Fuel valve handle installation    1                                                  7.22
              -21   U491-947K2  F  VALVE ASSEMBLY – Fuel shutoff               1                                                  536.5
                    492-014    E  VALVE ASSEMBLY – Fuel shutoff                1                                                  NM!
              -22   752-692    BG    GASKET                                    2                                                  NM!
                    -752-822   C    “O” RING                                   1  22-1760 and up                                  2.74
              -22a  -756-645        WASHER – Fuel valve                        1                                                  5.99
              -23   488-375    E  TEE – Inverted, left wing tank, fuel lines to shutoff valve (W/H 752 x 6)  1                    NM!
                    488-313     F  TEE – Inverted, left wing tank, fuel lines to shutoff valve (W/H 702 x 6)  1                   NM!
              -24   U14330-002  A  STRAINER ASSEMBLY – Fuel (complete)         1                                                  300.56
              -25   U12764-000  A    BOWL – (E-Z drain type)                   1                                                  136.73
              -25a  CCA-1550          DRAIN                                    1                                                  22.84
              -26   U87477-002  A    COVER – Strainer                          1                                                  122.83
              -27   U85012-032  A    GASKET                                    1                                                  4.19
              -28   U494-644   A    BAIL WIRE ASSEMBLY                         1                                                  69.43
              -29   U750-272   A    SCREEN – (#130P)                           1                                                  2.89
              -30   U80032-069  A  CLAMP – Primer lines attachment on engine   4                                                  17.11
              -31   U14470-000  A  BRACKET – Mounting, primer line tees        3                                                  9.65
              -32   U31197-000    JET – Primer, straight (includes ball sleeve and compression nut)   2                           59.87
                                    (4 per ship with four cylinder priming)
              -33   -11987-009    LINE ASSEMBLY – Primer tee (rear of engine) to rear cylinder  2  22-1 to 22-1759 inclusive      25.8
              -34   -10143-020    LINE – Primer, at right front cylinder       1  22-1 to 22-1759 inclusive                       35.99
                    10143-89   H  LINE – Primer, at right front cylinder       1                                                  NM!
                    -11987-061    LINE – Primer, at right front cylinder       1  22-3218, 22-3387 and up                         51.63
              -35   -10143-061    LINE – Primer, at right rear cylinder        1  22-1 to 22-1759 inclusive                       31.88
                    -10143-018  A  LINE – Primer, at right rear cylinder       1                                                  67.41
              -36   -10143-020    LINE – Primer, at left front cylinder        1  22-1 to 22-1759 inclusive                       35.99
                    -10143-091  A  LINE – Primer, at left front cylinder       1                                                  75.07
              -37   -10143-061    LINE – Primer, at left rear cylinder         1  22-1 to 22-1759 inclusive                       31.88
                    -10143-095  A  LINE – Primer, at left rear cylinder        1                                                  75.07
              -38   702X2         TEE – Primer lines at engine (3 per ship with four cylinder priming)  1                         39.12

                                  A – Used on PA-22 with serial numbers 22-2378, 22-2425 and up.
                                  B – Used with fuel valves which have a brass plug.
                                  C – Used with fuel valves which have a nickel silver plug.
                                  D – Not used on PA-22-108.
                                  E – Used on PA-22-108.
                                  F – Optional equipment on PA-22-108.
                                  G – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  H – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
                                    inclusive and 22-3219 to 22-3386 inclusive.
















                                                             113
