P. 121

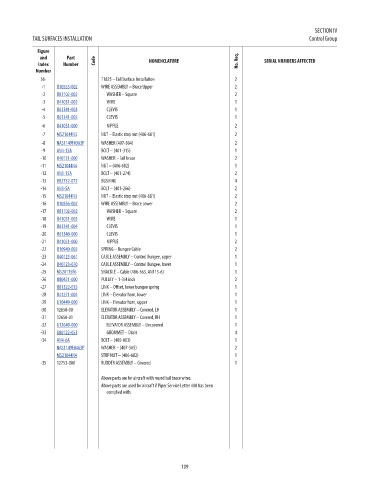

SECTION IV
            TAIL SURFACES INSTALLATION                                                                 Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              36-                 11825 – Tail Surface Installation            2                                                  NM!
               -1   U10555-002    WIRE ASSEMBLY – Brace Upper                  2                                                  209.62
               -2   U81102-002      WASHER – Square                            2                                                  6.11
               -3   U41031-002      WIRE                                       1                                                  42.41
               -4   U61341-003      CLEVIS                                     1                                                  33.45
               -5   U61341-002      CLEVIS                                     1                                                  44.31
               -6   U41051-000      NIPPLE                                     2                                                  30.51
               -7   MS21044N3     NUT – Elastic stop nut (406-681)             2                                                  0.24
               -8   NAS1149F0363P  WASHER (407-564)                            2                                                  0.04
               -9   AN4-15A       BOLT – (401-315)                             1                                                  0.44
              -10   U40131-000    WASHER – Tail brace                          2                                                  9.15
              -11   MS21044N4     NUT – (406-682)                              1                                                  0.3
              -12   AN3-15A       BOLT – (401-274)                             2                                                  0.32
              -13   U82732-072    BUSHING                                      4                                                  6.47
              -14   AN3-5A        BOLT – (401-266)                             2                                                  0.16
              -15   MS21044N3     NUT – Elastic stop nut (406-681)             2                                                  0.24
              -16   U10556-002    WIRE ASSEMBLY – Brace Lower                  2                                                  209.62
              -17   U81102-002      WASHER – Square                            2                                                  6.11
              -18   U41031-003      WIRE                                       1                                                  37.31
              -19   U61341-004      CLEVIS                                     1                                                  48.26
              -20   U61340-000      CLEVIS                                     1                                                  44.31
              -21   U41051-000      NIPPLE                                     2                                                  30.51
              -22   U10940-002    SPRING – Bungee Cable                        2                                                  65.71
              -23   U40123-061    CABLE ASSEMBLY – Control Bungee, upper       1                                                  67.59
              -24   U40123-070    CABLE ASSEMBLY – Control Bungee, lower       1                                                  54.1
              -25   MS20115F6     SHACKLE – Cable (486-563, AN115-6)           1                                                  68.06
              -26   U80421-000    PULLEY – 1-3/4 inch                          2                                                  12.37
              -27   U81322-015    LINK – Offset, lower bungee spring           1                                                  15.89
              -28   U41271-004    LINK – Elevator horn, lower                  1                                                  15.82
              -29   U10449-000    LINK – Elevator horn, upper                  1                                                  34.19
              -30   12650-00      ELEVATOR ASSEMBLY – Covered, LH              1                                                  NM!
              -31   12650-01      ELEVATOR ASSEMBLY – Covered, RH              1                                                  NM!
              -32   U12649-000      ELEVATOR ASSEMBLY – Uncovered              1                                                  849.41
              -33   U80122-053      GROMMET – Drain                            4                                                  4.09
              -34   AN4-6A        BOLT – (400-003)                             1                                                  0.22
                    NAS1149F0463P  WASHER – (407-565)                          2                                                  0.06
                    MS21044N4     STOP NUT – (406-682)                         1                                                  0.3
              -35   12753-000     RUDDER ASSEMBLY – Covered                    1                                                  NM!

                                  Above parts are for aircraft with round tail brace wires.
                                  Above parts are used for aircraft if Piper Service Letter 400 has been
                                    complied with.














                                                             109
