P. 119

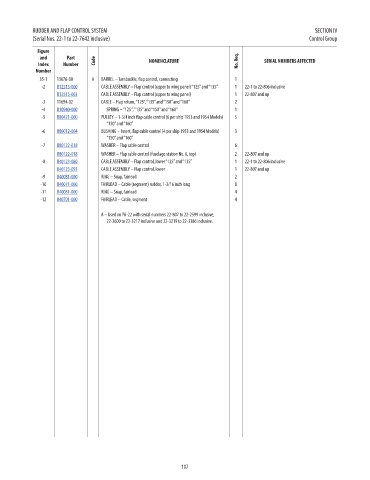

RUDDER AND FLAP CONTROL SYSTEM                                                               SECTION IV
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                    Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              35-1  13676-00   A  BARREL – Turnbuckle, flap control, connecting  1                                                NM!
               -2   U12515-000    CABLE ASSEMBLY – Flap control (upper to wing panel) “125” and “135”  1  22-1 to 22-806 inclusive  156.6
                    U12515-003    CABLE ASSEMBLY – Flap control (upper to wing panel)  1  22-807 and up                           202.5
               -3   11694-02      CABLE – Flap return, “125”, “135” and “150” and “160”  2                                        NM!
               -4   U10940-000      SPRING – “125 “, “135” and “150” and “160”  1                                                 33.57
               -5   U80421-000    PULLEY – 1-3/4 inch flap cable control (6 per ship 1953 and 1954 Models)   5                    12.37
                                    “150” and “160”
               -6   U80012-004    BUSHING – Insert, flap cable control (4 per ship 1953 and 1954 Models)   3                      7.45
                                    “150” and “160”
               -7   U80122-018    WASHER – Flap cable control                  6                                                  2.16
                    U80122-018    WASHER – Flap cable control (fuselage station No. 6, top)  2  22-807 and up                     2.16
               -8   U40123-080    CABLE ASSEMBLY – Flap control, lower “125” and “135”  1  22-1 to 22-806 inclusive               151.82
                    U40123-093    CABLE ASSEMBLY – Flap control, lower         1  22-807 and up                                   144.92
               -9   U40081-000    RING – Snap, fairlead                        2                                                  0.49
              -10   U40071-000    FAIRLEAD – Cable (segment) rudder, 1-3/16 inch long  8                                          1.32
              -11   U40081-000    RING – Snap, fairlead                        4                                                  0.49
              -12   U40701-000    FAIRLEAD – Cable, segment                    4                                                  1.3


                                  A – Used on PA-22 with serial numbers 22-807 to 22-2599 inclusive,
                                    22-2600 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.

















































                                                             107
