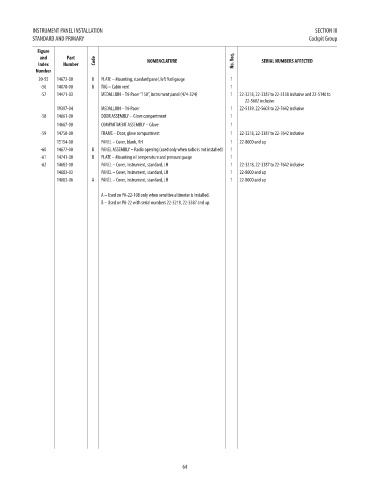

INSTRUMENT PANEL INSTALLATION SECTION III
STANDARD AND PRIMARY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
20-55 14672-00 B PLATE – Mounting, standard panel, left fuel gauge 1 NM!
-56 14078-00 B TAG – Cabin vent 1 NM!
-57 14471-03 MEDALLION – Tri-Pacer “150”, instrument panel (474-324) 1 22-3218, 22-3387 to 22-5138 inclusive and 22-5140 to NM!
22-5602 inclusive
19397-04 MEDALLION – Tri-Pacer 1 22-5139, 22-5603 to 22-7642 inclusive NM!
-58 14661-00 DOOR ASSEMBLY – Glove compartment 1 NM!
14667-00 COMPARTMENT ASSEMBLY – Glove 1 NM!
-59 14750-00 FRAME – Door, glove compartment 1 22-3218, 22-3387 to 22-7642 inclusive NM!
15154-00 PANEL – Cover, blank, RH 1 22-8000 and up NM!
-60 14677-00 B PANEL ASSEMBLY – Radio opening (used only when radio is not installed) 1 NM!
-61 14741-00 B PLATE – Mounting oil temperature and pressure gauge 1 NM!
-62 14683-00 PANEL – Cover, instrument, standard, LH 1 22-3218, 22-3387 to 22-7642 inclusive NM!
14683-03 PANEL – Cover, instrument, standard, LH 1 22-8000 and up NM!
14683-06 A PANEL – Cover, instrument, standard, LH 1 22-8000 and up NM!

A – Used on PA-22-108 only when sensitive altimeter is installed.
B – Used on PA-22 with serial numbers 22-3218, 22-3387 and up.

64
