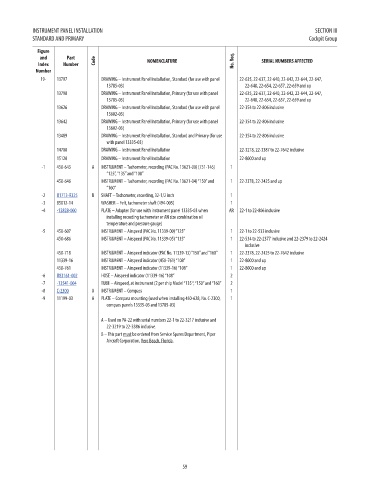

INSTRUMENT PANEL INSTALLATION SECTION III
STANDARD AND PRIMARY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
19- 13797 DRAWING – Instrument Panel Installation, Standard (for use with panel 22-635, 22-637, 22-640, 22-642, 22-644, 22-647, NM!
13785-03) 22-648, 22-654, 22-657, 22-659 and up
13798 DRAWING – Instrument Panel Installation, Primary (for use with panel 22-635, 22-637, 22-640, 22-642, 22-644, 22-647, NM!
13785-03) 22-648, 22-654, 22-657, 22-659 and up
13626 DRAWING – Instrument Panel Installation, Standard (for use with panel 22-354 to 22-806 inclusive NM!
13602-03)
13642 DRAWING – Instrument Panel Installation, Primary (for use with panel 22-354 to 22-806 inclusive NM!
13602-03)
13489 DRAWING – Instrument Panel Installation, Standard and Primary (for use 22-354 to 22-806 inclusive NM!
with panel 13335-03)
14708 DRAWING – Instrument Panel Installation 22-3218, 22-3387 to 22-7642 inclusive NM!
15120 DRAWING – Instrument Panel Installation 22-8000 and up NM!
-1 450-643 A INSTRUMENT – Tachometer, recording (PAC No. 13621-00) (751-146) 1 NM!
“125”, “135” and “108”
450-646 INSTRUMENT – Tachometer, recording (PAC No. 13621-04) “150” and 1 22-2378, 22-2425 and up NM!
“160”
-2 U1713-R325 B SHAFT – Tachometer, recording, 32-1/2 inch 1 165.41
-3 85012-14 WASHER – Felt, tachometer shaft (494-005) 1 NM!
-4 -12828-000 PLATE – Adapter (for use with instrument panel 13335-03 when AR 22-1 to 22-806 inclusive 26.44
installing recording tachometer or AN size combination oil
temperature and pressure gauge)
-5 450-607 INSTRUMENT – Airspeed (PAC No. 11339-00) “125” 1 22-1 to 22-533 inclusive NM!
450-686 INSTRUMENT – Airspeed (PAC No. 11339-05) “135” 1 22-534 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
450-718 INSTRUMENT – Airspeed indicator (PAC No. 11339-13) “150” and “160” 1 22-2378, 22-2425 to 22-7642 inclusive NM!
11339-16 INSTRUMENT – Airspeed indicator (450-761) “108” 1 22-8000 and up NM!
450-761 INSTRUMENT – Airspeed indicator (11339-16) “108” 1 22-8000 and up NM!
-6 U83161-002 HOSE – Airspeed indicator (11339-16) “108” 2 5.91
-7 -13541-004 TUBE – Airspeed, at instrument (2 per ship Model “135 “, “150” and “160” 2 13.54
-8 C-2300 A INSTRUMENT – Compass 1 238.25
-9 11199-03 A PLATE – Compass mounting (used when installing 450-628, No. C-2300, 1 NM!
compass panels 13335-03 and 13785-03)

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – This part must be ordered from Service Spares Department, Piper
Aircraft Corporation, Vero Beach, Florida.

59
