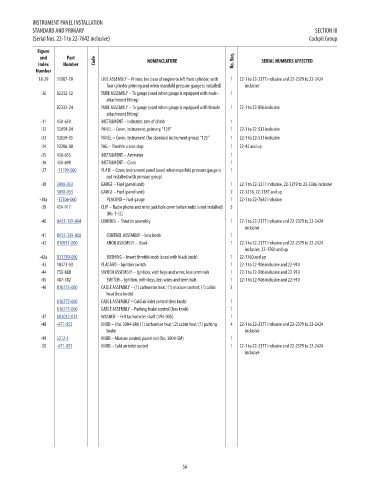

INSTRUMENT PANEL INSTALLATION
STANDARD AND PRIMARY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
18-29 11987-19 LINE ASSEMBLY – Primer, tee (rear of engine to left front cylinder, with 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
four cylinder priming and when manifold pressure gauge is installed) inclusive
-30 82332-32 TUBE ASSEMBLY – To gauge (used when gauge is equipped with male·· 1 NM!
attachment fitting)
82332-24 TUBE ASSEMBLY – To gauge (used when gauge is equipped with female 1 22-1 to 22-806 inclusive NM!
attachment fitting)
-31 450-659 INSTRUMENT – Indicator, rate of climb 1 NM!
-32 12659-04 PANEL – Cover, instrument, primary, “125” 1 22-1 to 22-533 inclusive NM!
-33 12659-05 PANEL – Cover, instrument (for standard instrument group) “125” 1 22-1 to 22-533 inclusive NM!
-34 13286-00 TAG – Throttle cruise stop 1 22-42 and up NM!
-35 450-655 INSTRUMENT – Ammeter 1 NM!
-36 450-698 INSTRUMENT – Clock 1 NM!
-37 -11199-000 PLATE – Cover, instrument panel (used when manifold pressure gauge is 1 46.98
not installed with primary group)
-38 3090-033 GAUGE – Fuel (panel unit) 1 22-1 to 22-3217 inclusive, 22-3219 to 22-3386 inclusive 237.42
3090-033 GAUGE – Fuel (panel unit) 2 22-3218, 22-3387 and up 237.42
-38a -15306-000 PLACARD – Fuel gauge 1 22-1 to 22-7642 inclusive 11.55
-39 454-917 CLIP – Radio phone and mike jack hole cover (when radio is not installed) 3 NM!
(No. 1-LC)
-40 U455-139-004 CONTROL – Throttle assembly 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 459.53
inclusive
-41 U455-139-000 CONTROL ASSEMBLY – Less knob 1 423.48
-42 U10911-000 KNOB ASSEMBLY – Black 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 12.44
inclusive, 22-1760 and up
-42a U11789-000 BUSHING – Insert throttle knob (used with black knob) 1 22-1760 and up 17.62
-43 10373-03 PLACARD – Ignition switch 1 22-1 to 22-906 inclusive and 22-910 NM!
-44 750-888 SWITCH ASSEMBLY – Ignition, with keys and wires, less terminals 1 22-1 to 22-906 inclusive and 22-910 NM!
-45 487-782 SWITCH – Ignition, with keys, less wires and terminals 1 22-1 to 22-906 inclusive and 22-910 NM!
-46 U16775-000 CABLE ASSEMBLY – (1) carburetor heat; (1) mixture control; (1) cabin 3 77.86
heat (less knob)
U16775-000 CABLE ASSEMBLY – Cold air inlet control (less knob) 1 77.86
U16775-000 CABLE ASSEMBLY – Parking brake control (less knob) 1 77.86
-47 U85012-014 WASHER – Felt tachometer shaft (494-005) 1 4.67
-48 -471-052 KNOB – (No. 3004-SM) (1) carburetor heat; (2) cabin heat; (1) parking 4 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 5.39
brake inclusive
-49 3312-1 KNOB – Mixture control, pastel red (No. 3004-SM) 1 12.96
-50 -471-052 KNOB – Cold air inlet control 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 5.39
inclusive

56
