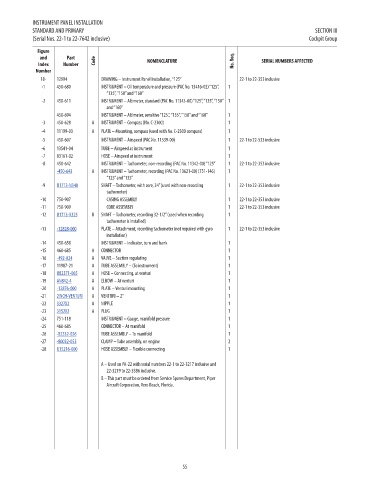

INSTRUMENT PANEL INSTALLATION
STANDARD AND PRIMARY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
18- 12994 DRAWING – Instrument Panel Installation, “125” 22-1 to 22-353 inclusive NM!
-1 450-680 INSTRUMENT – Oil temperature and pressure (PAC No. 13416-02) “125”, 1 NM!
“135”, “150” and “160”
-2 450-611 INSTRUMENT – Altimeter, standard (PAC No. 11343-00) “125”, “135”, “150” 1 NM!
and “160”
450-694 INSTRUMENT – Altimeter, sensitive “125.”, “135”, “150” and “160” 1 NM!
-3 450-628 A INSTRUMENT – Compass (No. C-2300) 1 NM!
-4 11199-03 A PLATE – Mounting, compass (used with No. C-2300 compass) 1 NM!
-5 450-607 INSTRUMENT – Airspeed (PAC No. 11339-00) 1 22-1 to 22-533 inclusive NM!
-6 13541-04 TUBE – Airspeed at instrument 1 NM!
-7 83161-02 HOSE – Airspeed at instrument 1 NM!
-8 450-642 INSTRUMENT – Tachometer, non-recording (PAC No. 11342-00) “125” 1 22-1 to 22-353 inclusive NM!
-450-643 A INSTRUMENT – Tachometer, recording (PAC No. 13621-00) (751-146) 1 327.25
“125” and “135”
-9 U1713-N340 SHAFT – Tachometer, with core, 34” (used with non-recording 1 22-1 to 22-353 inclusive 166.15
tachometer)
-10 750-907 CASING ASSEMBLY 1 22-1 to 22-353 inclusive NM!
-11 750-909 CORE ASSEMBLY 1 22-1 to 22-353 inclusive NM!
-12 U1713-R325 B SHAFT – Tachometer, recording 32-1/2” (used when recording 1 165.41
tachometer is installed)
-13 -12828-000 PLATE – Attachment, recording tachometer (not required with gyro 1 22-1 to 22-353 inclusive 26.44
installation)
-14 450-658 INSTRUMENT – Indicator, turn and bank 1 NM!
-15 460-685 A CONNECTOR 1 NM!
-16 -492-024 A VALVE – Suction regulating 1 24.95
-17 11987-21 A TUBE ASSEMBLY – (To instrument) 1 NM!
-18 U82371-065 A HOSE – Connecting, at venturi 1 77.89
-19 AN842-4 A ELBOW – At venturi 1 52
-20 -12876-000 A PLATE – Venturi mounting 1 68.73
-21 2INCH-VENTURI A VENTURI – 2” 1 56.35
-22 3327X2 A NIPPLE 1 2.64
-23 3152X2 A PLUG 1 1.42
-24 751-118 INSTRUMENT – Gauge, manifold pressure 1 NM!
-25 460-685 CONNECTOR – At manifold 1 NM!
-26 -82332-026 TUBE ASSEMBLY – To manifold 1 80.85
-27 -80032-053 CLAMP – Tube assembly, on engine 2 16.93
-28 U15216-000 HOSE ASSEMBLY – Flexible connecting 1 305.42

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – This part must be ordered from Service Spares Department, Piper
Aircraft Corporation, Vero Beach, Florida.

55
