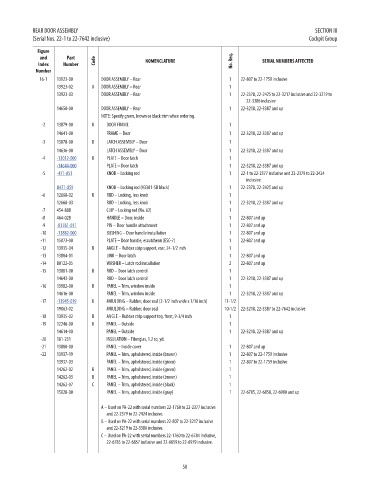

REAR DOOR ASSEMBLY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
16-1 13923-00 DOOR ASSEMBLY – Rear 1 22-807 to 22-1759 inclusive NM!
13923-02 A DOOR ASSEMBLY – Rear 1 NM!
13923-03 DOOR ASSEMBLY – Rear 1 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 to NM!
22-3386 inclusive
14650-00 DOOR ASSEMBLY – Rear 1 22-3218, 22-3387 and up NM!
NOTE: Specify green, brown or black trim when ordering.
-2 13879-00 B DOOR FRAME 1 NM!
14641-00 FRAME – Door 1 22-3218, 22-3387 and up NM!
-3 13878-00 B LATCH ASSEMBLY – Door 1 NM!
14636-00 LATCH ASSEMBLY – Door 1 22-3218, 22-3387 and up NM!
-4 -13012-000 B PLATE – Door latch 1 62.05
-14644-000 PLATE – Door latch 1 22-3218, 22-3387 and up 31.65
-5 -471-051 KNOB – Locking rod 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 2.19
inclusive
U471-059 KNOB – Locking rod (#3301-SD black) 1 22-2378, 22-2425 and up 4.13
-6 12668-02 B ROD – Locking, less knob 1 NM!
12668-03 ROD – Locking, less knob 1 22-3218, 22-3387 and up NM!
-7 454-888 CLIP – Locking rod (No. 62) 1 NM!
-8 464-028 HANDLE – Door, inside 1 22-807 and up NM!
-9 -81761-011 PIN – Door handle attachment 1 22-807 and up 10.08
-10 -13882-000 BUSHING – Door handle installation 1 22-807 and up 162.75
-11 15073-00 PLATE – Door handle, escutcheon (ESC-7) 1 22-807 and up NM!
-12 13935-04 B ANGLE – Rubber strip support, rear, 24-1/2 inch 1 NM!
-13 13884-01 LINK – Door latch 1 22-807 and up NM!
-14 80122-05 WASHER – Latch rod installation 2 22-807 and up NM!
-15 13881-00 B ROD – Door latch control 1 NM!
14643-00 ROD – Door latch control 1 22-3218, 22-3387 and up NM!
-16 13982-00 B PANEL – Trim, window inside 1 NM!
14616-00 PANEL – Trim, window inside 1 22-3218, 22-3387 and up NM!
-17 -13945-019 B MOULDING – Rubber, door seal (2-1/2 inch wide x 1/16 inch) 11-1/2 61.53
19063-02 MOULDING – Rubber, door seal 10-1/2 22-3218, 22-3387 to 22-7642 inclusive NM!
-18 13935-02 B ANGLE – Rubber strip support top, front, 9-3/4 inch 1 NM!
-19 12246-00 B PANEL – Outside 1 NM!
14614-00 PANEL – Outside 1 22-3218, 22-3387 and up NM!
-20 181-231 INSULATION – Fiberglas, 1.2 sq. yd. NM!
-21 13880-00 PANEL – Inside cover 1 22-807 and up NM!
-22 13937-19 PANEL – Trim, upholstered, inside (brown) 1 22-807 to 22-1759 inclusive NM!
13937-03 PANEL – Trim, upholstered, inside (green) 1 22-807 to 22-1759 inclusive NM!
14262-02 B PANEL – Trim, upholstered, inside (green) 1 NM!
14262-03 B PANEL – Trim, upholstered, inside (brown) 1 NM!
14262-07 C PANEL – Trim, upholstered, inside (black) 1 NM!
15028-00 PANEL – Trim, upholstered, inside (gray) 1 22-6785, 22-6858, 22-6980 and up NM!

A – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive
and 22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-807 to 22-3217 inclusive
and 22-3219 to 22-3386 inclusive.
C – Used on PA-22 with serial numbers 22-1760 to 22-6784 inclusive,
22-6785 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.

50
