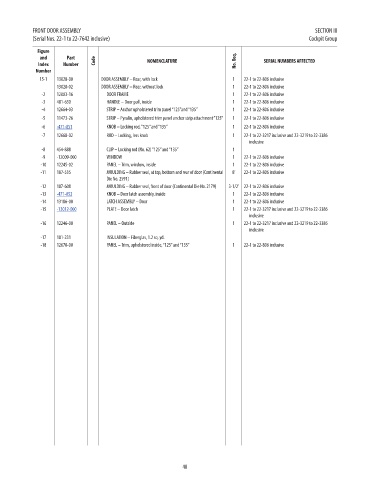

FRONT DOOR ASSEMBLY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
15-1 13028-00 DOOR ASSEMBLY – Rear, with lock 1 22-1 to 22-806 inclusive NM!
13028-02 DOOR ASSEMBLY – Rear, without lock 1 22-1 to 22-806 inclusive NM!
-2 12003-16 DOOR FRAME 1 22-1 to 22-806 inclusive NM!
-3 481-630 HANDLE – Door pull, inside 1 22-1 to 22-806 inclusive NM!
-4 12664-03 STRIP – Anchor upholstered trim panel “125”and “135” 1 22-1 to 22-806 inclusive NM!
-5 11473-26 STRIP – Pyralin, upholstered trim panel anchor strip attachment “125” 1 22-1 to 22-806 inclusive NM!
-6 -471-051 KNOB – Locking rod, “125” and “135” 1 22-1 to 22-806 inclusive 2.19
-7 12668-02 ROD – Locking, less knob 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
-8 454-888 CLIP – Locking rod (No. 62) “125” and “135” 1 NM!
-9 -12009-000 WINDOW 1 22-1 to 22-806 inclusive NM!
-10 12245-02 PANEL – Trim, window, inside 1 22-1 to 22-806 inclusive NM!
-11 187-535 MOULDING – Rubber seal, at top, bottom and rear of door (Continental 8’ 22-1 to 22-806 inclusive NM!
Die No. 2591)
-12 187-608 MOULDING – Rubber seal, front of door (Continental Die No. 2179) 3-1/2’ 22-1 to 22-806 inclusive NM!
-13 -471-052 KNOB – Door latch assembly, inside 1 22-1 to 22-806 inclusive 5.39
-14 13186-00 LATCH ASSEMBLY – Door 1 22-1 to 22-806 inclusive NM!
-15 -13012-000 PLATE – Door latch 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 62.05
inclusive
-16 12246-00 PANEL – Outside 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
-17 181-231 INSULATION – Fiberglas, 1.2 sq. yd. NM!
-18 12670-00 PANEL – Trim, upholstered inside, “125” and “135” 1 22-1 to 22-806 inclusive NM!
