Page 55 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

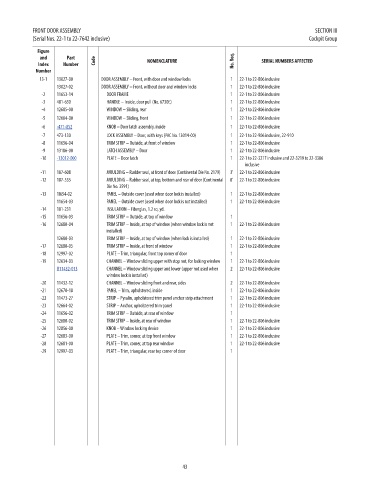

FRONT DOOR ASSEMBLY SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
13-1 13027-00 DOOR ASSEMBLY – Front, with door and window locks 1 22-1 to 22-806 inclusive NM!
13027-02 DOOR ASSEMBLY – Front, without door and window locks 1 22-1 to 22-806 inclusive NM!
-2 11653-14 DOOR FRAME 1 22-1 to 22-806 inclusive NM!
-3 481-630 HANDLE – Inside, door pull (No. 6730E) 1 22-1 to 22-806 inclusive NM!
-4 12685-00 WINDOW – Sliding, rear 1 22-1 to 22-806 inclusive NM!
-5 12684-00 WINDOW – Sliding, front 1 22-1 to 22-806 inclusive NM!
-6 -471-052 KNOB – Door latch assembly, inside 1 22-1 to 22-806 inclusive 5.39
-7 473-130 LOCK ASSEMBLY – Door, with keys (PAC No. 13014-00) 1 22-1 to 22-906 inclusive, 22-910 NM!
-8 11656-04 TRIM STRIP – Outside, at front of window 1 22-1 to 22-806 inclusive NM!
-9 13186-00 LATCH ASSEMBLY – Door 1 22-1 to 22-806 inclusive NM!
-10 -13012-000 PLATE – Door latch 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 62.05
inclusive
-11 187-608 MOULDING – Rudder seal, at front of door (Continental Die No. 2179) 3’ 22-1 to 22-806 inclusive NM!
-12 187-535 MOULDING – Rubber seal, at top, bottom and rear of door (Continental 8’ 22-1 to 22-806 inclusive NM!
Die No. 3591)
-13 1l654-02 PANEL – Outside cover (used when door lock is installed) 1 22-1 to 22-806 inclusive NM!
11654-03 PANEL – Outside cover (used when door lock is not installed) 1 22-1 to 22-806 inclusive NM!
-14 181-231 INSULATION – Fiberglas, 1.2 sq. yd. NM!
-15 11656-03 TRIM STRIP – Outside, at top of window 1 NM!
-16 12680-04 TRIM STRIP – Inside, at top of window (when window lock is not 1 22-1 to 22-806 inclusive NM!
installed)
12680-03 TRIM STRIP – Inside, at top of window (when lock is installed) 1 22-1 to 22-806 inclusive NM!
-17 12680-05 TRIM STRIP – Inside, at front of window 1 22-1 to 22-806 inclusive NM!
-18 12997-02 PLATE – Trim, triangular, front top corner of door 1 NM!
-19 12634-03 CHANNEL – Window sliding upper with stop nut, for locking window 1 22-1 to 22-806 inclusive NM!
U11432-013 CHANNEL – Window sliding upper and lower (upper not used when 2 22-1 to 22-806 inclusive 51.22
window lock is installed)
-20 11432-12 CHANNEL – Window sliding front and rear, sides 2 22-1 to 22-806 inclusive NM!
-21 12670-18 PANEL – Trim, upholstered, inside 1 22-1 to 22-806 inclusive NM!
-22 11473-27 STRIP – Pyralin, upholstered trim panel anchor strip attachment 1 22-1 to 22-806 inclusive NM!
-23 12664-02 STRIP – Anchor, upholstered trim panel 1 22-1 to 22-806 inclusive NM!
-24 11656-02 TRIM STRIP – Outside, at rear of window 1 NM!
-25 12680-02 TRIM STRIP – Inside, at rear of window 1 22-1 to 22-806 inclusive NM!
-26 12856-00 KNOB – Window locking device 1 22-1 to 22-806 inclusive NM!
-27 12683-00 PLATE – Trim, corner, at top front window 1 22-1 to 22-806 inclusive NM!
-28 12681-00 PLATE – Trim, corner, at top rear window 1 22-1 to 22-806 inclusive NM!
-29 12997-03 PLATE – Trim, triangular, rear top corner of door 1 NM!

43
