P. 53

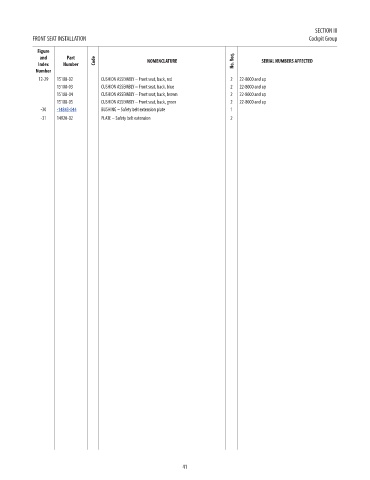

SECTION III
FRONT SEAT INSTALLATION Cockpit Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
12-29 15108-02 CUSHION ASSEMBLY – Front seat, back, red 2 22-8000 and up NM!
15108-03 CUSHION ASSEMBLY – Front seat, back, blue 2 22-8000 and up NM!
15108-04 CUSHION ASSEMBLY – Front seat, back, brown 2 22-8000 and up NM!
15108-05 CUSHION ASSEMBLY – Front seat, back, green 2 22-8000 and up NM!
-30 -14843-044 BUSHING – Safety belt extension plate 1 30.84
-31 14920-02 PLATE – Safety belt extension 2 NM!
41
