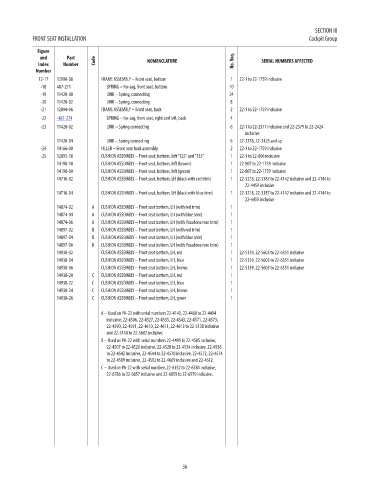

Page 48 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION III
FRONT SEAT INSTALLATION Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
12-17 12990-08 FRAME ASSEMBLY – Front seat, bottom 1 22-1 to 22-1759 inclusive NM!
-18 487-271 SPRING – No-sag, front seat, bottom 10 NM!
-19 11420-00 LINK – Spring, connecting 24 NM!
-20 11420-02 LINK – Spring, connecting 8 NM!
-21 12894-06 FRAME ASSEMBLY – Front seat, back 2 22-1 to 22-1759 inclusive NM!
-22 -487-274 SPRING – No-sag, front seat, right and left, back 4 67.76
-23 11420-02 LINK – Spring connecting 6 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
11420-04 LINK – Spring connecting 6 22-2378, 22-2425 and up NM!
-24 14166-00 FILLER – Front seat back assembly 2 22-1 to 22-1759 inclusive NM!
-25 12895-18 CUSHION ASSEMBLY – Front seat, bottom, left “125” and “135” 1 22-1 to 22-806 inclusive NM!
14198-10 CUSHION ASSEMBLY – Front seat, bottom, left (brown) 1 22-807 to 22-1759 inclusive NM!
14198-00 CUSHION ASSEMBLY – Front seat, bottom, left (green) 1 22-807 to 22-1759 inclusive NM!
14716-02 CUSHION ASSEMBLY – Front seat, bottom, LH (black with red trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14716-04 CUSHION ASSEMBLY – Front seat, bottom, LH (black with blue trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14874-02 A CUSHION ASSEMBLY – Front seat bottom, LH (with red trim) 1 NM!
14874-04 A CUSHION ASSEMBLY – Front seat bottom, LH (with blue trim) 1 NM!
14874-06 A CUSHION ASSEMBLY – Front seat bottom, LH (with Pasadena rose trim) 1 NM!
14897-02 B CUSHION ASSEMBLY – Front seat bottom, LH (with red trim) 1 NM!
14897-04 B CUSHION ASSEMBLY – Front seat bottom, LH (with blue trim) 1 NM!
14897-06 B CUSHION ASSEMBLY – Front seat bottom, LH (with Pasadena rose trim) 1 NM!
14938-02 CUSHION ASSEMBLY – Front seat bottom, LH, red 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14938-04 CUSHION ASSEMBLY – Front seat bottom, LH, blue 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14938-06 CUSHION ASSEMBLY – Front seat bottom, LH, brown 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14938-20 C CUSHION ASSEMBLY – Front seat bottom, LH, red 1 NM!
14938-22 C CUSHION ASSEMBLY – Front seat bottom, LH, blue 1 NM!
14938-24 C CUSHION ASSEMBLY – Front seat bottom, LH, brown 1 NM!
14938-26 C CUSHION ASSEMBLY – Front seat bottom, LH, green 1 NM!

A – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
inclusive; 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive
and 22-5140 to 22-5602 inclusive.
B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
C – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.

36
