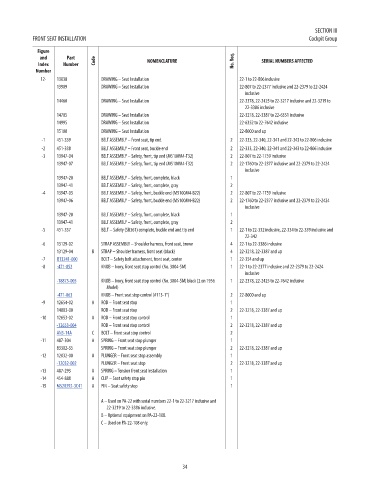

SECTION III
FRONT SEAT INSTALLATION Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
12- 13038 DRAWING – Seat Installation 22-1 to 22-806 inclusive NM!
13909 DRAWING – Seat Installation 22-807 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14460 DRAWING – Seat Installation 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 to NM!
22-3386 inclusive
14705 DRAWING – Seat Installation 22-3218, 22-3387 to 22-6351 inclusive NM!
14995 DRAWING – Seat Installation 22-6352 to 22-7642 inclusive NM!
15100 DRAWING – Seat Installation 22-8000 and up NM!
-1 451-339 BELT ASSEMBLY – Front seat, tip end 2 22-333, 22-340, 22-341 and 22-343 to 22-806 inclusive NM!
-2 451-338 BELT ASSEMBLY – Front seat, buckle end 2 22-333, 22-340, 22-341 and 22-343 to 22-806 inclusive NM!
-3 13947-04 BELT ASSEMBLY – Safety, front, tip end (M5100M4-T32) 2 22-807 to 22-1759 inclusive NM!
13947-07 BELT ASSEMBLY – Safety, front, tip end (M5100M4-T32) 2 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
13947-20 BELT ASSEMBLY – Safety, front, complete, black 1 NM!
13947-41 BELT ASSEMBLY – Safety, front, complete, gray 2 NM!
-4 13947-03 BELT ASSEMBLY – Safety, front, buckle end (M5100M4-B22) 2 22-807 to 22-1759 inclusive NM!
13947-06 BELT ASSEMBLY – Safety, front, buckle end (M5100M4-B22) 2 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
13947-20 BELT ASSEMBLY – Safety, front, complete, black 1 NM!
13947-41 BELT ASSEMBLY – Safety, front, complete, gray 2 NM!
-5 451-337 BELT – Safety (SB361) complete, buckle end and tip end 1 22-1 to 22-332 inclusive, 22-334 to 22-339 inclusive and NM!
22-342
-6 13129-02 STRAP ASSEMBLY – Shoulder harness, front seat, brown 4 22-1 to 22-3386 inclusive NM!
13129-04 B STRAP – Shoulder harness, front seat (black) 4 22-3218, 22-3387 and up NM!
-7 U13241-000 BOLT – Safety belt attachment, front seat, center 1 22-354 and up 17.42
-8 -471-052 KNOB – Ivory, front seat stop control (No. 3004-SM) 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 5.39
inclusive
-18875-005 KNOB – Ivory, front seat stop control (No. 3004-SM) black (2 on 1956 1 22-2378, 22-2425 to 22-7642 inclusive 11.03
Model)
-471-063 KNOB – Front seat stop control (#113-1”) 2 22-8000 and up 6.68
-9 12654-02 A ROD – Front seat stop 1 NM!
14803-00 ROD – Front seat stop 2 22-3218, 22-3387 and up NM!
-10 12653-02 A ROD – Front seat stop control 1 NM!
-12653-004 ROD – Front seat stop control 2 22-3218, 22-3387 and up 21.44
AN3-14A C BOLT – Front seat stop control 2 0.18
-11 487-304 A SPRING – Front seat stop plunger 1 NM!
83302-35 SPRING – Front seat stop plunger 2 22-3218, 22-3387 and up NM!
-12 12032-00 A PLUNGER – Front seat stop assembly 1 NM!
-12032-002 PLUNGER – Front seat stop 2 22-3218, 22-3387 and up 103.33
-13 487-293 A SPRING – Tension front seat installation 1 NM!
-14 454-888 A CLIP – Seat safety stop pin 1 NM!
-15 MS20392-3C41 A PIN – Seat safety stop 1 1.6

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – Optional equipment on PA-22-108.
C – Used on PA-22-108 only.
