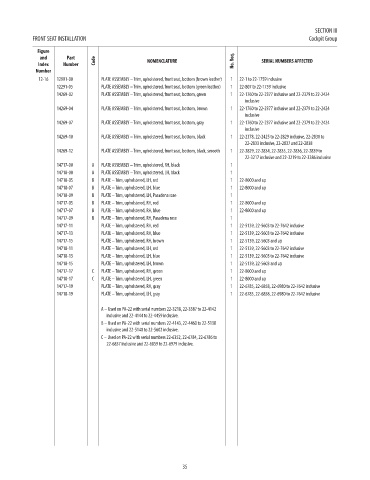

Page 47 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION III
FRONT SEAT INSTALLATION Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
12-16 12991-00 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom (brown leather) 1 22-1 to 22-1759 inclusive NM!
12291-05 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom (green leather) 1 22-807 to 22-1759 inclusive NM!
14269-02 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom, green 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14269-04 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom, brown 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14269-07 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom, gray 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14269-10 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom, black 1 22-2378, 22-2425 to 22-2829 inclusive, 22-2830 to NM!
22-2833 inclusive, 22-2837 and 22-2838
14269-12 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom, black, smooth 1 22-2829, 22-2834, 22-2835, 22-2836, 22-2839 to NM!
22-3217 inclusive and 22-3219 to 22-3386 inclusive
14717-00 A PLATE ASSEMBLY – Trim, upholstered, RH, black 1 NM!
14718-00 A PLATE ASSEMBLY – Trim, upholstered, LH, black 1 NM!
14718-05 B PLATE – Trim, upholstered, LH, red 1 22-8000 and up NM!
14718-07 B PLATE – Trim, upholstered, LH, blue 1 22-8000 and up NM!
14718-09 B PLATE – Trim, upholstered, LH, Pasadena rose 1 NM!
14717-05 B PLATE – Trim, upholstered, RH, red 1 22-8000 and up NM!
14717-07 B PLATE – Trim, upholstered, RH, blue 1 22-8000 and up NM!
14717-09 B PLATE – Trim, upholstered, RH, Pasadena rose 1 NM!
14717-11 PLATE – Trim, upholstered, RH, red 1 22-5139, 22-5603 to 22-7642 inclusive NM!
14717-13 PLATE – Trim, upholstered, RH, blue 1 22-5139, 22-5603 to 22-7642 inclusive NM!
14717-15 PLATE – Trim, upholstered, RH, brown 1 22-5139, 22-5603 and up NM!
14718-11 PLATE – Trim, upholstered, LH, red 1 22-5139, 22-5603 to 22-7642 inclusive NM!
14718-13 PLATE – Trim, upholstered, LH, blue 1 22-5139, 22-5603 to 22-7642 inclusive NM!
14718-15 PLATE – Trim, upholstered, LH, brown 1 22-5139, 22-5603 and up NM!
14717-17 C PLATE – Trim, upholstered, RH, green 1 22-8000 and up NM!
14718-17 C PLATE – Trim, upholstered, LH, green 1 22-8000 and up NM!
14717-19 PLATE – Trim, upholstered, RH, gray 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
14718-19 PLATE – Trim, upholstered, LH, gray 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!

A – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-4142
inclusive and 22-4144 to 22-4459 inclusive.
B – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-5138
inclusive and 22-5140 to 22-5602 inclusive.
C – Used on PA-22 with serial numbers 22-6352, 22-6784, 22-6786 to
22-6857 inclusive and 22-6859 to 22-6979 inclusive.

35
