P. 51

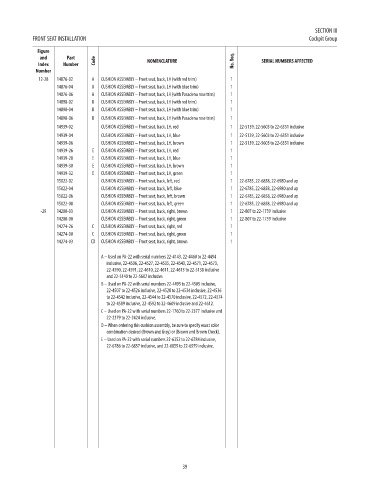

SECTION III
            FRONT SEAT INSTALLATION                                                                    Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              12-28  14876-02  A  CUSHION ASSEMBLY – Front seat, back, LH (with red trim)  1                                      NM!
                    14876-04   A  CUSHION ASSEMBLY – Front seat, back, LH (with blue trim)  1                                     NM!
                    14876-06   A  CUSHION ASSEMBLY – Front seat, back, LH (with Pasadena rose trim)  1                            NM!
                    14898-02   B  CUSHION ASSEMBLY – Front seat, back, LH (with red trim)  1                                      NM!
                    14898-04   B  CUSHION ASSEMBLY – Front seat, back, LH (with blue trim)  1                                     NM!
                    14898-06   B  CUSHION ASSEMBLY – Front seat, back, LH (with Pasadena rose trim)  1                            NM!
                    14939-02      CUSHION ASSEMBLY – Front seat, back, LH, red  1  22-5139, 22-5603 to 22-6351 inclusive          NM!
                    14939-04      CUSHION ASSEMBLY – Front seat, back, LH, blue  1  22-5139, 22-5603 to 22-6351 inclusive         NM!
                    14939-06      CUSHION ASSEMBLY – Front seat, back, LH, brown  1  22-5139, 22-5603 to 22-6351 inclusive        NM!
                    14939-26   E  CUSHION ASSEMBLY – Front seat, back, LH, red  1                                                 NM!
                    14939-28   E  CUSHION ASSEMBLY – Front seat, back, LH, blue  1                                                NM!
                    14939-30   E  CUSHION ASSEMBLY – Front seat, back, LH, brown  1                                               NM!
                    14939-32   E  CUSHION ASSEMBLY – Front seat, back, LH, green  1                                               NM!
                    15022-02      CUSHION ASSEMBLY – Front seat, back, left, red  1  22-6785, 22-6858, 22-6980 and up             NM!
                    15022-04      CUSHION ASSEMBLY – Front seat, back, left, blue  1  22-6785, 22-6858, 22-6980 and up            NM!
                    15022-06      CUSHION ASSEMBLY – Front seat, back, left, brown  1  22-6785, 22-6858, 22-6980 and up           NM!
                    15022-08      CUSHION ASSEMBLY – Front seat, back, left, green  1  22-6785, 22-6858, 22-6980 and up           NM!
              -29   14200-03      CUSHION ASSEMBLY – Front seat, back, right, brown  1  22-807 to 22-1759 inclusive               NM!
                    14200-00      CUSHION ASSEMBLY – Front seat, back, right, green  1  22-807 to 22-1759 inclusive               NM!
                    14274-26   C  CUSHION ASSEMBLY – Front seat, back, right, red  1                                              NM!
                    14274-00   C  CUSHION ASSEMBLY – Front seat, back, right, green  1                                            NM!
                    14274-03   CD  CUSHION ASSEMBLY – Front seat, back, right, brown  1                                           NM!

                                  A – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
                                    inclusive, 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
                                    22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive
                                    and 22-5140 to 22-5602 inclusive.
                                  B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
                                    22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
                                    to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
                                    to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
                                  C – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  D – When ordering this cushion assembly, be sure to specify exact color
                                    combination desired (Brown and Gray) or (Brown and Brown Check).
                                  E – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive, and 22-6859 to 22-6979 inclusive.























                                                             39
