P. 52

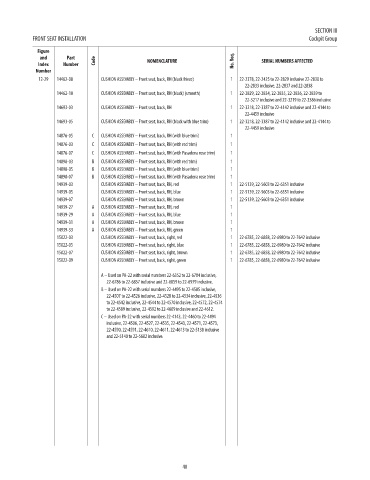

SECTION III
            FRONT SEAT INSTALLATION                                                                    Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              12-29  14462-08     CUSHION ASSEMBLY – Front seat, back, RH (black frieze)  1  22-2378, 22-2425 to 22-2829 inclusive 22-2830 to    NM!
                                                                                  22-2833 inclusive, 22-2837 and 22-2838
                    14462-10      CUSHION ASSEMBLY – Front seat, back, RH (black) (smooth)  1  22-2829, 22-2834, 22-2835, 22-2836, 22-2839 to   NM!
                                                                                  22-3217 inclusive and 22-3219 to 22-3386 inclusive
                    14693-03      CUSHION ASSEMBLY – Front seat, back, RH    1  22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to    NM!
                                                                                  22-4459 inclusive
                    14693-05      CUSHION ASSEMBLY – Front seat, back, RH (black with blue trim)  1  22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to    NM!
                                                                                  22-4459 inclusive
                    14876-05   C  CUSHION ASSEMBLY – Front seat, back, RH (with blue trim)  1                                     NM!
                    14876-03   C  CUSHION ASSEMBLY – Front seat, back, RH (with red trim)  1                                      NM!
                    14876-07   C  CUSHION ASSEMBLY – Front seat, back, RH (with Pasadena rose trim)  1                            NM!
                    14898-03   B  CUSHION ASSEMBLY – Front seat, back, RH (with red trim)  1                                      NM!
                    14898-05   B  CUSHION ASSEMBLY – Front seat, back, RH (with blue trim)  1                                     NM!
                    14898-07   B  CUSHION ASSEMBLY – Front seat, back, RH (with Pasadena rose trim)  1                            NM!
                    14939-03      CUSHION ASSEMBLY – Front seat, back, RH, red  1  22-5139, 22-5603 to 22-6351 inclusive          NM!
                    14939-05      CUSHION ASSEMBLY – Front seat, back, RH, blue  1  22-5139, 22-5603 to 22-6351 inclusive         NM!
                    14939-07      CUSHION ASSEMBLY – Front seat, back, RH, brown  1  22-5139, 22-5603 to 22-6351 inclusive        NM!
                    14939-27   A  CUSHION ASSEMBLY – Front seat, back, RH, red  1                                                 NM!
                    14939-29   A  CUSHION ASSEMBLY – Front seat, back, RH, blue  1                                                NM!
                    14939-31   A  CUSHION ASSEMBLY – Front seat, back, RH, brown  1                                               NM!
                    14939-33   A  CUSHION ASSEMBLY – Front seat, back, RH, green  1                                               NM!
                    15022-03      CUSHION ASSEMBLY – Front seat, back, right, red  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15022-05      CUSHION ASSEMBLY – Front seat, back, right, blue  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15022-07      CUSHION ASSEMBLY – Front seat, back, right, brown  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15022-09      CUSHION ASSEMBLY – Front seat, back, right, green  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!

                                  A – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
                                  B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
                                    22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
                                    to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
                                    to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
                                  C – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
                                    inclusive, 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
                                    22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive
                                    and 22-5140 to 22-5602 inclusive.

























                                                             40
