P. 50

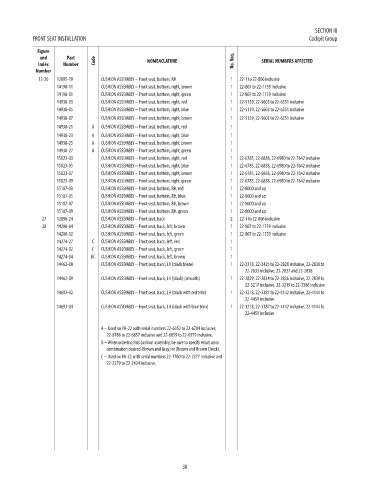

SECTION III
            FRONT SEAT INSTALLATION                                                                    Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              12-26  12895-19     CUSHION ASSEMBLY – Front seat, bottom, RH  1  22-1 to 22-806 inclusive                          NM!
                    14198-11      CUSHION ASSEMBLY – Front seat, bottom, right, brown  1  22-807 to 22-1759 inclusive             NM!
                    14198-01      CUSHION ASSEMBLY – Front seat, bottom, right, green  1  22-807 to 22-1759 inclusive             NM!
                    14938-03      CUSHION ASSEMBLY – Front seat, bottom, right, red  1  22-5139, 22-5603 to 22-6351 inclusive     NM!
                    14938-05      CUSHION ASSEMBLY – Front seat, bottom, right, blue  1  22-5139, 22-5603 to 22-6351 inclusive    NM!
                    14938-07      CUSHION ASSEMBLY – Front seat, bottom, right, brown  1  22-5139, 22-5603 to 22-6351 inclusive   NM!
                    14938-21   A  CUSHION ASSEMBLY – Front seat, bottom, right, red  1                                            NM!
                    14938-23   A  CUSHION ASSEMBLY – Front seat, bottom, right, blue  1                                           NM!
                    14938-25   A  CUSHION ASSEMBLY – Front seat, bottom, right, brown  1                                          NM!
                    14938-27   A  CUSHION ASSEMBLY – Front seat, bottom, right, green  1                                          NM!
                    15023-03      CUSHION ASSEMBLY – Front seat, bottom, right, red  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15023-05      CUSHION ASSEMBLY – Front seat, bottom, right, blue  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15023-07      CUSHION ASSEMBLY – Front seat, bottom, right, brown  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15023-09      CUSHION ASSEMBLY – Front seat, bottom, right, green  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15107-03      CUSHION ASSEMBLY – Front seat, bottom, RH, red  1  22-8000 and up                               NM!
                    15107-05      CUSHION ASSEMBLY – Front seat, bottom, RH, blue  1  22-8000 and up                              NM!
                    15107-07      CUSHION ASSEMBLY – Front seat, bottom, RH, brown  1  22-8000 and up                             NM!
                    15107-09      CUSHION ASSEMBLY – Front seat, bottom, RH, green  1  22-8000 and up                             NM!
              -27   12896-24      CUSHION ASSEMBLY – Front seat, back        2  22-1 to 22-806 inclusive                          NM!
              -28   14200-64      CUSHION ASSEMBLY – Front seat, back, left, brown  1  22-807 to 22-1759 inclusive                NM!
                    14200-02      CUSHION ASSEMBLY – Front seat, back, left, green  1  22-807 to 22-1759 inclusive                NM!
                    14274-27   C  CUSHION ASSEMBLY – Front seat, back, left, red  1                                               NM!
                    14274-02   C  CUSHION ASSEMBLY – Front seat, back, left, green  1                                             NM!
                    14274-04   BC  CUSHION ASSEMBLY – Front seat, back, left, brown  1                                            NM!
                    14462-00      CUSHION ASSEMBLY – Front seat, back, LH (black frieze)  1  22-2378, 22-2425 to 22-2828 inclusive, 22-2830 to    NM!
                                                                                  22-2833 inclusive, 22-2837 and 22-2838
                    14462-09      CUSHION ASSEMBLY – Front seat, back, LH (black) (smooth)  1  22-2829, 22-2834 to 22-2836 inclusive, 22-2839 to    NM!
                                                                                  22-3217 inclusive, 22-3219 to 22-3386 inclusive
                    14693-02      CUSHION ASSEMBLY – Front seat, back, LH (black with red trim)  1  22-3218, 22-3387 to 22-4142 inclusive, 22-4144 to   NM!
                                                                                  22-4459 inclusive
                    14693-04      CUSHION ASSEMBLY – Front seat, back, LH (black with blue trim)  1  22-3218, 22-3387 to 22-4142 inclusive, 22-4144 to   NM!
                                                                                  22-4459 inclusive

                                  A – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
                                  B – When ordering this cushion assembly, be sure to specify exact color
                                    combination desired (Brown and Gray) or (Brown and Brown Check).
                                  C – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.




















                                                             38
