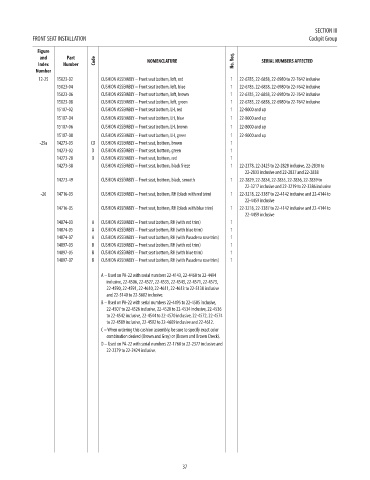

SECTION III
FRONT SEAT INSTALLATION Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
12-25 15023-02 CUSHION ASSEMBLY – Front seat bottom, left, red 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
15023-04 CUSHION ASSEMBLY – Front seat bottom, left, blue 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
15023-06 CUSHION ASSEMBLY – Front seat bottom, left, brown 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
15023-08 CUSHION ASSEMBLY – Front seat bottom, left, green 1 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
15107-02 CUSHION ASSEMBLY – Front seat bottom, LH, red 1 22-8000 and up NM!
15107-04 CUSHION ASSEMBLY – Front seat bottom, LH, blue 1 22-8000 and up NM!
15107-06 CUSHION ASSEMBLY – Front seat bottom, LH, brown 1 22-8000 and up NM!
15107-08 CUSHION ASSEMBLY – Front seat bottom, LH, green 1 22-8000 and up NM!
-25a 14273-03 CD CUSHION ASSEMBLY – Front seat, bottom, brown 1 NM!
14273-02 D CUSHION ASSEMBLY – Front seat, bottom, green 1 NM!
14273-28 D CUSHION ASSEMBLY – Front seat, bottom, red 1 NM!
14273-38 CUSHION ASSEMBLY – Front seat, bottom, black frieze 1 22-2378, 22-2425 to 22-2828 inclusive, 22-2830 to NM!
22-2833 inclusive and 22-2837 and 22-2838
14273-49 CUSHION ASSEMBLY – Front seat, bottom, black, smooth 1 22-2829, 22-2834, 22-2835, 22-2836, 22-2839 to NM!
22-3217 inclusive and 22-3219 to 22-3386 inclusive
-26 14716-03 CUSHION ASSEMBLY – Front seat, bottom, RH (black with red trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14716-05 CUSHION ASSEMBLY – Front seat, bottom, RH (black with blue trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14874-03 A CUSHION ASSEMBLY – Front seat bottom, RH (with red trim) 1 NM!
14874-05 A CUSHION ASSEMBLY – Front seat bottom, RH (with blue trim) 1 NM!
14874-07 A CUSHION ASSEMBLY – Front seat bottom, RH (with Pasadena rose trim) 1 NM!
14897-03 B CUSHION ASSEMBLY – Front seat bottom, RH (with red trim) 1 NM!
14897-05 B CUSHION ASSEMBLY – Front seat bottom, RH (with blue trim) 1 NM!
14897-07 B CUSHION ASSEMBLY – Front seat bottom, RH (with Pasadena rose trim) 1 NM!

A – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
inclusive, 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive
and 22-5140 to 22-5602 inclusive.
B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
C – When ordering this cushion assembly, be sure to specify exact color
combination desired (Brown and Gray) or (Brown and Brown Check).
D – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.

37
