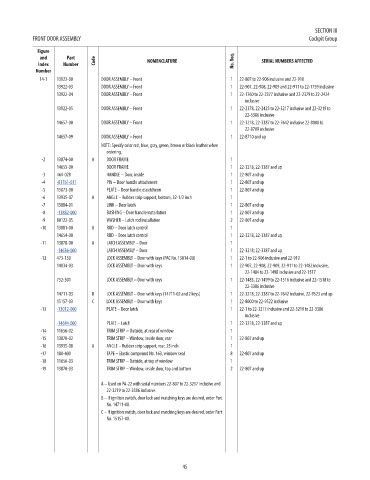

SECTION III
FRONT DOOR ASSEMBLY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
14-1 13922-00 DOOR ASSEMBLY – Front 1 22-807 to 22-906 inclusive and 22-910 NM!
13922-03 DOOR ASSEMBLY – Front 1 22-907, 22-908, 22-909 and 22-911 to 22-1759 inclusive NM!
13922-04 DOOR ASSEMBLY – Front 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
13922-05 DOOR ASSEMBLY – Front 1 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 to NM!
22-3386 inclusive
14657-00 DOOR ASSEMBLY – Front 1 22-3218, 22-3387 to 22-7642 inclusive 22-8000 to NM!
22-8709 inclusive
14657-09 DOOR ASSEMBLY – Front 1 22-8710 and up NM!
NOTE: Specify color red, blue, gray, green, brown or black leather when
ordering.
-2 13874-00 A DOOR FRAME 1 NM!
14655-00 DOOR FRAME 1 22-3218, 22-3387 and up NM!
-3 464-028 HANDLE – Door, inside 1 22-807 and up NM!
-4 -81761-011 PIN – Door handle attachment 1 22-807 and up 10.08
-5 15073-00 PLATE – Door handle escutcheon 1 22-807 and up NM!
-6 13935-07 A ANGLE – Rubber strip support, bottom, 32-1/2 inch 1 NM!
-7 13884-01 LINK – Door latch 1 22-807 and up NM!
-8 -13882-000 BUSHING – Door handle installation 1 22-807 and up 162.75
-9 80122-05 WASHER – Latch rod installation 2 22-807 and up NM!
-10 13881-00 A ROD – Door latch control 1 NM!
14654-00 ROD – Door latch control 1 22-3218, 22-3387 and up NM!
-11 13878-00 A LATCH ASSEMBLY – Door 1 NM!
-14636-000 LATCH ASSEMBLY – Door 1 22-3218; 22-3387 and up 419
-12 473-130 LOCK ASSEMBLY – Door with keys (PAC No. 13014-00) 1 22-1 to 22-906 inclusive and 22-910 NM!
14034-03 LOCK ASSEMBLY – Door with keys 1 22-907, 22-908, 22-909, 22-911 to 22-1482 inclusive, NM!
22-1484 to 22-1498 inclusive and 22-1517
752-301 LOCK ASSEMBLY – Door with keys 1 22-1483, 22-1499 to 22-1516 inclusive and 22-1518 to NM!
22-3386 inclusive
14711-03 B LOCK ASSEMBLY – Door with keys (14711-02 and 2 keys) 1 22-3218, 22-3387 to 22-7642 inclusive, 22-9523 and up NM!
15157-03 C LOCK ASSEMBLY – Door with keys 1 22-8000 to 22-9522 inclusive NM!
-13 -13012-000 PLATE – Door latch 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 62.05
inclusive
-14644-000 PLATE – Latch 1 22-3218, 22-3387 and up 31.65
-14 11656-02 TRIM STRIP – Outside, at rear of window 1 NM!
-15 13870-02 TRIM STRIP – Window, inside door, rear 1 22-807 and up NM!
-16 13935-08 A ANGLE – Rubber strip support, rear, 25 inch 1 NM!
-17 180-400 TAPE – Elastic compound No. 163, window seal 8 22-807 and up NM!
-18 11656-03 TRIM STRIP – Outside, at top of window 1 NM!
-19 13870-03 TRIM STRIP – Window, inside door, top and bottom 2 22-807 and up NM!

A – Used on PA-22 with serial numbers 22-807 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – If ignition switch, door lock and matching keys are desired, order Part
No. 14711-00.
C – If ignition switch, door lock and matching keys are desired, order Part
No. 15157-00.

45
