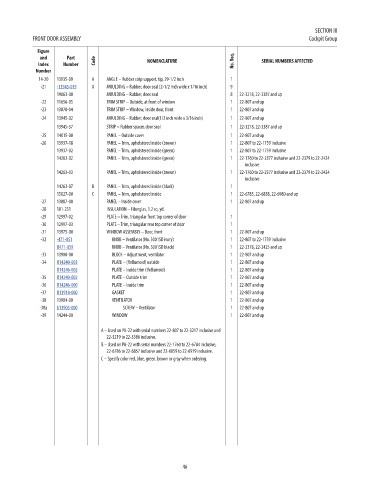

Page 58 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION III
FRONT DOOR ASSEMBLY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
14-20 13935-09 A ANGLE – Rubber strip support, tip, 29-1/2 inch 1 NM!
-21 -13945-019 A MOULDING – Rubber, door seal (2-1/2 inch wide x 1/16 inch) 9 61.53
19063-00 MOULDING – Rubber, door seal 8 22-3218, 22-3387 and up NM!
-22 11656-05 TRIM STRIP – Outside, at front of window 1 22-807 and up NM!
-23 13870-04 TRIM STRIP – Window, inside door, front 1 22-807 and up NM!
-24 13945-02 MOULDING – Rubber, door seal(1/2 inch wide x 3/16 inch) 1 22-807 and up NM!
13945-37 STRIP – Rubber spacer, door seal 1 22-3218, 22-3387 and up NM!
-25 14015-00 PANEL – Outside cover 1 22-807 and up NM!
-26 13937-18 PANEL – Trim, upholstered inside (brown) 1 22-807 to 22-1759 inclusive NM!
13937-02 PANEL – Trim, upholstered inside (green) 1 22-807 to 22-1759 inclusive NM!
14263-02 PANEL – Trim, upholstered inside (green) 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14263-03 PANEL – Trim, upholstered inside (brown) 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14263-07 B PANEL – Trim, upholstered inside (black) 1 NM!
15027-00 C PANEL – Trim, upholstered inside 1 22-6785, 22-6858, 22-6980 and up NM!
-27 13887-00 PANEL – Inside cover 1 22-807 and up NM!
-28 181-231 INSULATION – Fiberglas, 1.2 sq. yd. NM!
-29 12997-02 PLATE – Trim, triangular front top corner of door 1 NM!
-30 12997-03 PLATE – Trim, triangular rear top corner of door 1 NM!
-31 13975-00 WINDOW ASSEMBLY – Door, front 1 22-807 and up NM!
-32 -471-051 KNOB – Ventilator (No. 3001SD ivory) 1 22-807 to 22-1759 inclusive 2.19
U471-059 KNOB – Ventilator (No. 3001SD black) 1 22-2378, 22-2425 and up 4.13
-33 13900-00 BLOCK – Adjustment, ventilator 1 22-807 and up NM!
-34 U14240-003 PLATE – (Vellumoid) outside 1 22-807 and up 11.13
U14246-002 PLATE – Inside trim (Vellumoid) 1 22-807 and up 6.35
-35 U14240-002 PLATE – Outside trim 1 22-807 and up 45.26
-36 U14246-000 PLATE – Inside trim 1 22-807 and up 34.12
-37 U13914-000 GASKET 1 22-807 and up 9.58
-38 13904-00 VENTILATOR 1 22-807 and up NM!
-38a U13903-000 SCREW – Ventilator 1 22-807 and up 6.28
-39 14244-00 WINDOW 1 22-807 and up NM!

A – Used on PA-22 with serial numbers 22-807 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – Used on PA-22 with serial numbers 22-1760 to 22-6784 inclusive,
22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
C – Specify color red, blue, green, brown or gray when ordering.
