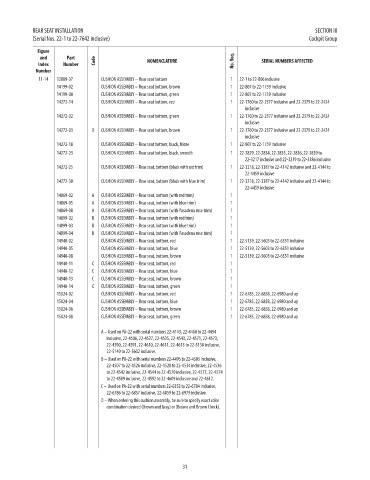

REAR SEAT INSTALLATION SECTION III
(Serial Nos. 22-1 to 22-7642 inclusive) Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
11-14 12889-37 CUSHION ASSEMBLY – Rear seat bottom 1 22-1 to 22-806 inclusive NM!
14199-02 CUSHION ASSEMBLY – Rear seat bottom, brown 1 22-807 to 22-1759 inclusive NM!
14199-00 CUSHION ASSEMBLY – Rear seat bottom, green 1 22-807 to 22-1759 inclusive NM!
14272-14 CUSHION ASSEMBLY – Rear seat bottom, red 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14272-02 CUSHION ASSEMBLY – Rear seat bottom, green 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14272-03 D CUSHION ASSEMBLY – Rear seat bottom, brown 1 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14272-18 CUSHION ASSEMBLY – Rear seat bottom, black, frieze 1 22-807 to 22-1759 inclusive NM!
14272-23 CUSHION ASSEMBLY – Rear seat bottom, black, smooth 1 22-2829, 22-2834, 22-2835, 22-2836, 22-2839 to NM!
22-3217 inclusive and 22-3219 to 22-3386 inclusive
14272-25 CUSHION ASSEMBLY – Rear seat, bottom (black with red trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14272-30 CUSHION ASSEMBLY – Rear seat, bottom (black with blue trim) 1 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to NM!
22-4459 inclusive
14869-02 A CUSHION ASSEMBLY – Rear seat, bottom (with red trim) 1 NM!
14869-05 A CUSHION ASSEMBLY – Rear seat, bottom (with blue trim) 1 NM!
14869-08 A CUSHION ASSEMBLY – Rear seat, bottom (with Pasadena rose trim) 1 NM!
14899-02 B CUSHION ASSEMBLY – Rear seat, bottom (with red trim) 1 NM!
14899-03 B CUSHION ASSEMBLY – Rear seat, bottom (with blue trim) 1 NM!
14899-04 B CUSHION ASSEMBLY – Rear seat, bottom (with Pasadena rose trim) 1 NM!
14940-02 CUSHION ASSEMBLY – Rear seat, bottom, red 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14940-05 CUSHION ASSEMBLY – Rear seat, bottom, blue 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14940-08 CUSHION ASSEMBLY – Rear seat, bottom, brown 1 22-5139, 22-5603 to 22-6351 inclusive NM!
14940-11 C CUSHION ASSEMBLY – Rear seat, bottom, red 1 NM!
14940-12 C CUSHION ASSEMBLY – Rear seat, bottom, blue 1 NM!
14940-13 C CUSHION ASSEMBLY – Rear seat, bottom, brown 1 NM!
14940-14 C CUSHION ASSEMBLY – Rear seat, bottom, green 1 NM!
15024-02 CUSHION ASSEMBLY – Rear seat, bottom, red 1 22-6785, 22-6858, 22-6980 and up NM!
15024-04 CUSHION ASSEMBLY – Rear seat, bottom, blue 1 22-6785, 22-6858, 22-6980 and up NM!
15024-06 CUSHION ASSEMBLY – Rear seat, bottom, brown 1 22-6785, 22-6858, 22-6980 and up NM!
15024-08 CUSHION ASSEMBLY – Rear seat, bottom, green 1 22-6785, 22-6858, 22-6980 and up NM!

A – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-4494
inclusive, 22-4506, 22-4527, 22-4535, 22-4543, 22-4571, 22-4573,
22-4590, 22-4591, 22-4610, 22-4611, 22-4613 to 22-5138 inclusive,
22-5140 to 22-5602 inclusive.
B – Used on PA-22 with serial numbers 22-4495 to 22-4505 inclusive,
22-4507 to 22-4526 inclusive, 22-4528 to 22-4534 inclusive, 22-4536
to 22-4542 inclusive, 22-4544 to 22-4570 inclusive, 22-4572, 22-4574
to 22-4589 inclusive, 22-4592 to 22-4609 inclusive and 22-4612.
C – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
22-6786 to 22-6857 inclusive, 22-6859 to 22-6979 inclusive.
D – When ordering this cushion assembly, be sure to specify exact color
combination desired (Brown and Gray) or (Brown and Brown Check).

31
