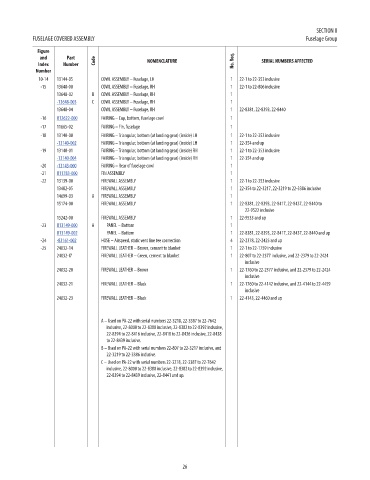

Page 38 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION II
FUSELAGE COVERED ASSEMBLY Fuselage Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
10-14 13144-05 COWL ASSEMBLY – Fuselage, LH 1 22-1 to 22-353 inclusive NM!
-15 13648-00 COWL ASSEMBLY – Fuselage, RH 1 22-1 to 22-806 inclusive NM!
13648-02 B COWL ASSEMBLY – Fuselage, RH 1 NM!
-13648-003 C COWL ASSEMBLY – Fuselage, RH 1 194.26
13648-04 COWL ASSEMBLY – Fuselage, RH 1 22-8381, 22-8393, 22-8440 NM!
-16 U12622-000 FAIRING – Cup, bottom, fuselage cowl 1 142.18
-17 11665-02 FAIRING – Fin, fuselage 1 NM!
-18 13140-00 FAIRING – Triangular, bottom (at landing gear) (inside) LH 1 22-1 to 22-353 inclusive NM!
-13140-002 FAIRING – Triangular, bottom (at landing gear) (inside) LH 1 22-354 and up 116.26
-19 13140-01 FAIRING – Triangular, bottom (at landing gear) (inside) RH 1 22-1 to 22-353 inclusive NM!
-13140-004 FAIRING – Triangular, bottom (at landing gear) (inside) RH 1 22-354 and up 116.26
-20 -13143-000 FAIRING – Rear of fuselage cowl 1 318.1
-21 U11783-000 FIN ASSEMBLY 1 657.67
-22 13139-00 FIREWALL ASSEMBLY 1 22-1 to 22-353 inclusive NM!
13482-05 FIREWALL ASSEMBLY 1 22-354 to 22-3217, 22-3219 to 22-3386 inclusive NM!
14699-03 A FIREWALL ASSEMBLY 1 NM!
15174-00 FIREWALL ASSEMBLY 1 22-8381, 22-8393, 22-8417, 22-8437, 22-8440 to NM!
22-9522 inclusive
15242-00 FIREWALL ASSEMBLY 1 22-9533 and up NM!
-23 U13149-000 A PANEL – Bottom 1 241.63
U13149-002 PANEL – Bottom 1 22-8381, 22-8393, 22-8417, 22-8437, 22-8440 and up 231.85
-24 -83161-002 HOSE – Airspeed, static vent line tee connection 4 22-2378, 22-2425 and up NM!
-25 24032-14 FIREWALL LEATHER – Brown, cement to blanket 1 22-1 to 22-1759 inclusive NM!
24032-I7 FIREWALL LEATHER – Green, cement to blanket 1 22-807 to 22-2377 inclusive, and 22-2379 to 22-2424 NM!
inclusive
24032-20 FIREWALL LEATHER – Brown 1 22-1760 to 22-2377 inclusive, and 22-2379 to 22-2424 NM!
inclusive
24032-21 FIREWALL LEATHER – Black 1 22-1760 to 22-4142 inclusive, and 22-4144 to 22-4459 NM!
inclusive
24032-23 FIREWALL LEATHER – Black 1 22-4143, 22-4460 and up NM!

A – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-7642
inclusive, 22-8000 to 22-8380 inclusive, 22-8382 to 22-8392 inclusive,
22-8394 to 22-8416 inclusive, 22-8418 to 22-8436 inclusive, 22-8438
to 22-8439 inclusive.
B – Used on PA-22 with serial numbers 22-807 to 22-3217 inclusive, and
22-3219 to 22-3386 inclusive.
C – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-7642
inclusive, 22-8000 to 22-8380 inclusive, 22-8382 to 22-8392 inclusive,
22-8394 to 22-8439 inclusive, 22-8441 and up.

26
