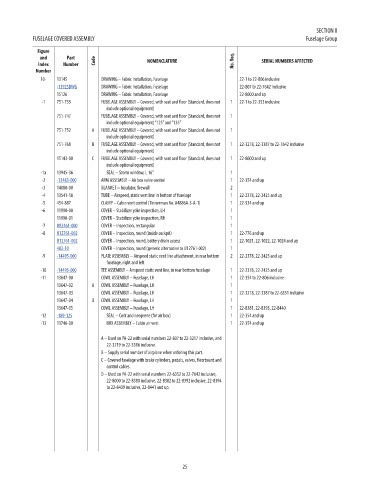

Page 37 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION II
FUSELAGE COVERED ASSEMBLY Fuselage Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
10- 13145 DRAWING – Fabric Installation, Fuselage 22-1 to 22-806 inclusive NM!
-13925DWG DRAWING – Fabric Installation, Fuselage 22-807 to 22-7642 inclusive 65.97
15126 DRAWING – Fabric Installation, Fuselage 22-8000 and up NM!
-1 751-735 FUSELAGE ASSEMBLY – Covered, with seat and floor (Standard, does not 1 22-1 to 22-353 inclusive NM!
include optional equipment)
751-747 FUSELAGE ASSEMBLY – Covered, with seat and floor (Standard, does not 1 NM!
include optional equipment) “125” and “135”
751-752 A FUSELAGE ASSEMBLY – Covered, with seat and floor (Standard, does not 1 NM!
include optional equipment)
751-768 B FUSELAGE ASSEMBLY – Covered, with seat and floor (Standard, does not 1 22-3218, 22-3387 to 22-7642 inclusive NM!
include optional equipment)
15143-00 C FUSELAGE ASSEMBLY – Covered, with seat and floor (Standard, does not 1 22-8000 and up NM!
include optional equipment)
-1a 13945-36 SEAL – Storm window, L 16” 1 NM!
-2 -13483-000 ARM ASSEMBLY – Air box valve control 1 22-354 and up 75.53
-3 14080-00 BLANKET – Insulator, firewall 2 NM!
-4 13541-18 TUBE – Airspeed, static vent line in bottom of fuselage 1 22-2378, 22-2425 and up NM!
-5 454-887 CLAMP – Cabin vent control (Tinnerman No. A4886A-3-A-1) 1 22-534 and up NM!
-6 11990-00 COVER – Stabilizer yoke inspection, LH 1 NM!
11990-01 COVER – Stabilizer yoke inspection, RH 1 NM!
-7 U82461-000 COVER – Inspection, rectangular 1 18.02
-8 U12761-002 COVER – Inspection, round (inside cockpit) 1 22-776 and up 46.86
U12761-002 COVER – Inspection, round, battery drain access 1 22-1021, 22-1022, 22-1024 and up 46.86
483-10 COVER – Inspection, round (generic alternative to U12761-002) 1 2.25
-9 -14495-000 PLATE ASSEMBLY – Airspeed static vent line attachment, in rear bottom 2 22-2378, 22-2425 and up 44.25
fuselage, right and left
-10 -14493-000 TEE ASSEMBLY – Airspeed static vent line, in rear bottom fuselage 1 22-2378, 22-2425 and up 96.68
-11 13647-00 COWL ASSEMBLY – Fuselage, LH 1 22-354 to 22-806 inclusive NM!
13647-02 A COWL ASSEMBLY – Fuselage, LH 1 NM!
13647-03 COWL ASSEMBLY – Fuselage, LH 1 22-3218, 22-3387 to 22-6351 inclusive NM!
13647-04 D COWL ASSEMBLY – Fuselage, LH 1 NM!
13647-05 COWL ASSEMBLY – Fuselage, LH 1 22-8381, 22-8393, 22-8440 NM!
-12 -189-125 SEAL – Cork and neoprene (for air box) 1 22-354 and up 4.22
-13 13746-00 BOX ASSEMBLY – Cabin air vent 1 22-354 and up NM!
X
A – Used on PA-22 with serial numbers 22-807 to 22-3217 inclusive, and X
22-3219 to 22-3386 inclusive.
B – Supply serial number of airplane when ordering this part. X
C – Covered fuselage with brake cylinders, pedals, valves, floorboard and X
control cables.
D – Used on PA-22 with serial numbers 22-6352 to 22-7642 inclusive, X
22-8000 to 22-8380 inclusive, 22-8382 to 22-8392 inclusive, 22-8394
to 22-8439 inclusive, 22-8441 and up.
X
X
X
X
X
X
X
X

25
