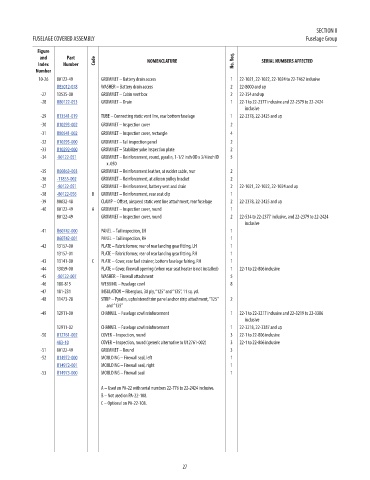

SECTION II
FUSELAGE COVERED ASSEMBLY Fuselage Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
10-26 80122-49 GROMMET – Battery drain access 1 22-1021, 22-1022, 22-1024 to 22-7462 inclusive NM!
U85012-078 WASHER – Battery drain access 2 22-8000 and up 8.99
-27 13535-00 GROMMET – Cabin vent box 2 22-354 and up NM!
-28 U80122-053 GROMMET – Drain 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 4.09
inclusive
-29 U13541-019 TUBE – Connecting static vent line, rear bottom fuselage 1 22-2378, 22-2425 and up 19.3
-30 U10293-002 GROMMET – Inspection cover 2 22.83
-31 U80541-002 GROMMET – Inspection cover, rectangle 4 14.81
-32 U10293-000 GROMMET – Tail inspection panel 2 10.71
-33 U10292-000 GROMMET – Stabilizer yoke inspection plate 2 13
-34 -80122-051 GROMMET – Reinforcement, round, pyralin, 1-1/2 inch OD x 3/4 inch ID 5 4.37
x .050
-35 U60863-003 GROMMET – Reinforcement leather, at rudder cable, rear 2 4.14
-36 -11855-002 GROMMET – Reinforcement, at aileron pulley bracket 2 10.21
-37 -80122-051 GROMMET – Reinforcement, battery vent and drain 2 22-1021, 22-1022, 22-1024 and up 4.37
-38 -80122-056 B GROMMET – Reinforcement, rear seat clip 1 12.79
-39 80032-48 CLAMP – Offset, airspeed static vent line attachment, rear fuselage 2 22-2378, 22-2425 and up NM!
-40 80122-49 A GROMMET – Inspection cover, round 1 NM!
80122-49 GROMMET – Inspection cover, round 2 22-534 to 22-2377 inclusive, and 22-2379 to 22-2424 NM!
inclusive
-41 U60742-000 PANEL – Tail inspection, LH 1 38.43
U60742-001 PANEL – Tail inspection, RH 1 38.43
-42 13157-00 PLATE – Fabric former, rear of rear landing gear fitting, LH 1 NM!
13157-01 PLATE – Fabric former, rear of rear landing gear fitting, RH 1 NM!
-43 13141-00 C PLATE – Cover, rear fuel strainer, bottom fuselage fairing, RH 1 NM!
-44 13059-00 PLATE – Cover, firewall opening (when rear seat heater is not installed) 1 22-1 to 22-806 inclusive NM!
-45 -80122-007 WASHER – Firewall attachment 5 6.11
-46 180-815 WEBBING – Fuselage cowl 8 NM!
-47 181-231 INSULATION – Fiberglass, 30 ply, “125” and “135”, 11 sq. yd. NM!
-48 11473-28 STRIP – Pyralin, upholstered trim panel anchor strip attachment, “125” 2 NM!
and “135”
-49 12911-00 CHANNEL – Fuselage cowl reinforcement 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
12911-02 CHANNEL – Fuselage cowl reinforcement 1 22-3218, 22-3387 and up NM!
-50 U12761-002 COVER – Inspection, round 3 22-1 to 22-806 inclusive 46.86
483-10 COVER – Inspection, round (generic alternative to U12761-002) 3 22-1 to 22-806 inclusive 2.25
-51 80122-49 GROMMET – Round 3 NM!
-52 U14972-000 MOULDING – Firewall seal, left 1 184.64
U14972-001 MOULDING – Firewall seal, right 1 184.64
-53 U14973-000 MOULDING – Firewall seal 1 175.39
X
A – Used on PA-22 with serial numbers 22-776 to 22-2424 inclusive. X
B – Not used on PA-22-108. X
C – Optional on PA-22-108.

27
