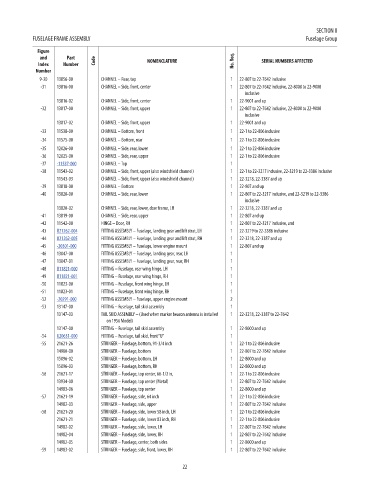

Page 34 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION II
FUSELAGE FRAME ASSEMBLY Fuselage Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
9-30 13856-00 CHANNEL – Rear, top 1 22-807 to 22-7642 inclusive NM!
-31 13816-00 CHANNEL – Side, front, center 1 22-807 to 22-7642 inclusive, 22-8000 to 22-9000 NM!
inclusive
13816-02 CHANNEL – Side, front, center 1 22-9001 and up NM!
-32 13817-00 CHANNEL – Side, front, upper 1 22-807 to 22-7642 inclusive, 22-8000 to 22-9000 NM!
inclusive
13817-02 CHANNEL – Side, front, upper 1 22-9001 and up NM!
-33 11538-00 CHANNEL – Bottom, front 1 22-1 to 22-806 inclusive NM!
-34 11575-00 CHANNEL – Bottom, rear 1 22-1 to 22-806 inclusive NM!
-35 12026-00 CHANNEL – Side, rear, lower 1 22-1 to 22-806 inclusive NM!
-36 12025-00 CHANNEL – Side, rear, upper 1 22-1 to 22-806 inclusive NM!
-37 -11537-000 CHANNEL – Top 1 47.48
-38 11543-02 CHANNEL – Side, front, upper (also windshield channel) 1 22-1 to 22-3217 inclusive, 22-3219 to 22-3386 inclusive NM!
11543-03 CHANNEL – Side, front, upper (also windshield channel) 1 22-3218, 22-3387 and up NM!
-39 13818-00 CHANNEL – Bottom 1 22-807 and up NM!
-40 13820-00 CHANNEL – Side, rear, lower 1 22-807 to 22-3217 inclusive, and 22-3219 to 22-3386 NM!
inclusive
13820-02 CHANNEL – Side, rear, lower, door frame, LH 1 22-3218, 22-3387 and up NM!
-41 13819-00 CHANNEL – Side, rear, upper 1 22-807 and up NM!
-42 11542-00 HINGE – Door, RH 1 22-807 to 22-3217 inclusive, and NM!
-43 U21262-004 FITTING ASSEMBLY – Fuselage, landing gear and lift strut, LH 1 22-3219 to 22-3386 inclusive 378.83
-44 U21262-005 FITTING ASSEMBLY – Fuselage, landing gear and lift strut, RH 1 22-3218, 22-3387 and up 378.83
-45 -20301-000 FITTING ASSEMBLY – Fuselage, lower engine mount 1 22-807 and up 173.66
-46 13047-00 FITTING ASSEMBLY – Fuselage, landing gear, rear, LH 1 NM!
-47 13047-01 FITTING ASSEMBLY – Fuselage, landing gear, rear, RH 1 NM!
-48 U11821-000 FITTING – Fuselage, rear wing hinge, LH 1 46.17
-49 U11821-001 FITTING – Fuselage, rear wing hinge, RH 1 46.17
-50 11823-00 FITTING – Fuselage, front wing hinge, LH 1 NM!
-51 11823-01 FITTING – Fuselage, front wing hinge, RH 1 NM!
-52 -20291-000 FITTING ASSEMBLY – Fuselage, upper engine mount 2 187.37
-53 13147-00 FITTING – Fuselage, tail skid assembly 1 NM!
13147-03 TAIL SKID ASSEMBLY – (Used when marker beacon antenna is installed 1 22-3218, 22-3387 to 22-7642 NM!
on 1956 Model)
13147-00 FITTING – Fuselage, tail skid assembly 1 22-8000 and up NM!
-54 U20631-000 FITTING – Fuselage, tail skid, front “U” 1 43.69
-55 21621-26 STRINGER – Fuselage, bottom, 91-3/4 inch 1 22-1 to 22-806 inclusive NM!
14980-00 STRINGER – Fuselage, bottom 1 22-807 to 22-7642 inclusive NM!
15096-02 STRINGER – Fuselage, bottom, LH 1 22-8000 and up NM!
15096-03 STRINGER – Fuselage, bottom, RH 1 22-8000 and up NM!
-56 21621-17 STRINGER – Fuselage, top center, 66-1/2 in, 1 22-1 to 22-806 inclusive NM!
13934-00 STRINGER – Fuselage, top center (Metal) 1 22-807 to 22-7642 inclusive NM!
14983-06 STRINGER – Fuselage, top center 1 22-8000 and up NM!
-57 21621-19 STRINGER – Fuselage, side, 64 inch 1 22-1 to 22-806 inclusive NM!
14982-03 STRINGER – Fuselage, side, upper 1 22-807 to 22-7642 inclusive NM!
-58 21621-20 STRINGER – Fuselage, side, lower 58 inch, LH 1 22-1 to 22-806 inclusive NM!
21621-21 STRINGER – Fuselage, side, lower 83 inch, RH 1 22-1 to 22-806 inclusive NM!
14982-02 STRINGER – Fuselage, side, lower, LH 1 22-807 to 22-7642 inclusive NM!
14982-04 STRINGER – Fuselage, side, lower, RH 1 22-807 to 22-7642 inclusive NM!
14982-05 STRINGER – Fuselage, center, both sides 1 22-8000 and up NM!
-59 14983-02 STRINGER – Fuselage, side, front, lower, RH 1 22-807 to 22-7642 inclusive NM!
