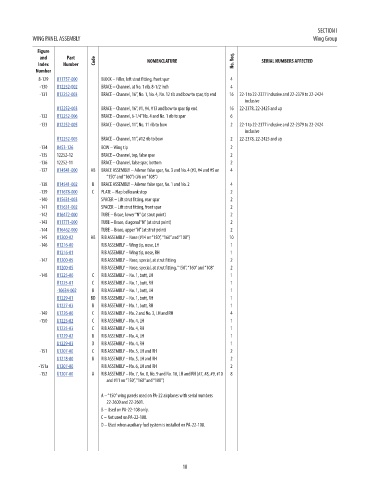

Page 30 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
8-129 U11757-000 BLOCK – Filler, left strut fitting, front spar 4 56.52
-130 U12252-002 BRACE – Channel, at No. 1 rib, 8-1/2 inch 4 13
-131 U12252-003 BRACE – Channel, 16”, No. 1, No. 4, No. 12 rib and bow to spar, tip end 16 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 16.86
inclusive
U12252-003 BRACE – Channel, 16”, #1, #4, #13 and bow to spar tip end 16 22-2378, 22-2425 and up 16.86
-132 U12252-006 BRACE – Channel, 6-1/4” No. 4 and No. 1 rib to spar 6 14.1
-133 U12252-005 BRACE – Channel, 11”, No. 11 rib to bow 2 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 13
inclusive
U12252-005 BRACE – Channel, 11”, #12 rib to bow 2 22-2378, 22-2425 and up 13
-134 U453-126 BOW – Wing tip 2 46.14
-135 12252-12 BRACE – Channel, top, false spar 2 NM!
-136 12252-11 BRACE – Channel, false spar, bottom 2 NM!
-137 U14541-000 AB BRACE ASSEMBLY – Aileron false spar, No. 3 and No. 4 (#3, #4 and #5 on 4 57.7
“150” and “160”) (#6 on “108”)
-138 U14541-002 B BRACE ASSEMBLY – Aileron false spar, No. 1 and No. 2 4 94.53
-139 U11678-000 C PLATE – Flap bellcrank stop 2 21.9
-140 U15631-003 SPACER – Lift strut fitting, rear spar 2 18.15
-141 U15631-002 SPACER – Lift strut fitting, front spar 2 18.15
-142 U16472-000 TUBE – Brace, lower “N” (at strut point) 2 131.95
-143 U11771-000 TUBE – Brace, diagonal “N” (at strut point) 2 108.65
-144 U16462-000 TUBE – Brace, upper “N” (at strut point) 2 131.49
-145 U1200-02 AB RIB ASSEMBLY – Nose (#14 on “150”, “160” and “108”) 10 29.72
-146 U1216-00 RIB ASSEMBLY – Wing tip, nose, LH 1 31.99
U1216-01 RIB ASSEMBLY – Wing tip, nose, RH 1 47.68
-147 U1200-05 RIB ASSEMBLY – Nose, special, at strut fitting 2 41.8
U1200-05 RIB ASSEMBLY – Nose, special, at strut fitting, “150”, “160” and “108” 2 41.8
-148 U1225-00 C RIB ASSEMBLY – No. 1, butt, LH 1 178.05
U1225-01 C RIB ASSEMBLY – No. 1, butt, RH 1 145.49
-10634-002 B RIB ASSEMBLY – No. 1, butt, LH 1 369.97
U1229-01 BD RIB ASSEMBLY – No. 1, butt, RH 1 175.22
U1227-03 B RIB ASSEMBLY – No. 1, butt, RH 1 173.92
-149 U1226-00 C RIB ASSEMBLY – No. 2 and No. 3, LH and RH 4 160.99
-150 U1225-02 C RIB ASSEMBLY – No. 4, LH 1 162.43
U1225-03 C RIB ASSEMBLY – No. 4, RH 1 157.31
U1229-02 B RIB ASSEMBLY – No. 4, LH 1 133.84
U1229-03 D RIB ASSEMBLY – No. 4, RH 1 173.25
-151 U1207-00 C RIB ASSEMBLY – No. 5, LH and RH 2 150.64
U1218-00 B RIB ASSEMBLY – No. 5, LH and RH 2 131.32
-151a U1207-00 RIB ASSEMBLY – No. 6, LH and RH 2 150.64
-152 U1207-00 A RIB ASSEMBLY – No. 7, No. 8, No. 9 and No. 10, LH and RH (#7, #8, #9, #10 8 150.64
and #11 on “150”, “160” and “108”)

A – “150” wing panels used on PA-22 airplanes with serial numbers
22-2600 and 22-2601.
B – Used on PA-22-108 only.
C – Not used on PA-22-108.
D – Used when auxiliary fuel system is installed on PA-22-108.

18
