P. 35

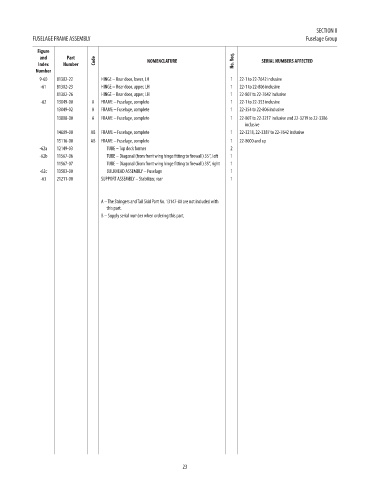

SECTION II
FUSELAGE FRAME ASSEMBLY Fuselage Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
9-60 81302-22 HINGE – Rear door, lower, LH 1 22-1 to 22-7642 inclusive NM!
-61 81302-23 HINGE – Rear door, upper, LH 1 22-1 to 22-806 inclusive NM!
81302-26 HINGE – Rear door, upper, LH 1 22-807 to 22-7642 inclusive NM!
-62 13049-00 A FRAME – Fuselage, complete 1 22-1 to 22-353 inclusive NM!
13049-02 A FRAME – Fuselage, complete 1 22-354 to 22-806 inclusive NM!
13808-00 A FRAME – Fuselage, complete 1 22-807 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
14609-00 AB FRAME – Fuselage, complete 1 22-3218, 22-3387 to 22-7642 inclusive NM!
15116-00 AB FRAME – Fuselage, complete 1 22-8000 and up NM!
-62a 12149-03 TUBE – Top deck former 2 NM!
-62b 11567-06 TUBE – Diagonal (from front wing hinge fitting to firewall) 35 “, left 1 NM!
11567-07 TUBE – Diagonal (from front wing hinge fitting to firewall) 35”, right 1 NM!
-62c 13583-00 BULKHEAD ASSEMBLY – Fuselage 1 NM!
-63 21211-00 SUPPORT ASSEMBLY – Stabilizer, rear 1 NM!
A – The Stringers and Tail Skid Part No. 13147-00 are not included with
this part.
B – Supply serial number when ordering this part.
23
