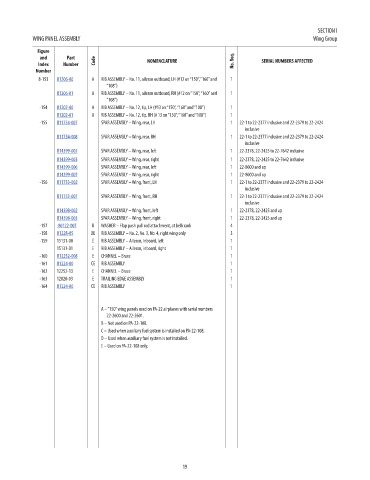

Page 31 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
8-153 U1206-00 A RIB ASSEMBLY – No. 11, aileron outboard, LH (#12 on “150”, “160” and 1 185.34
“108”)
U1206-01 A RIB ASSEMBLY – No. 11, aileron outboard, RH (#12 on “150”, “160” and 1 199.97
“108”)
-154 U1202-00 A RIB ASSEMBLY – No. 12, tip, LH (#13 on “150”, “160” and “108”) 1 177.8
U1202-01 A RIB ASSEMBLY – No. 12, tip, RH (# 13 on “150”, “160” and “108”) 1 178.74
-155 U11754-007 SPAR ASSEMBLY – Wing, rear, LH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 648.13
inclusive
U11754-008 SPAR ASSEMBLY – Wing, rear, RH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 648.13
inclusive
U14399-002 SPAR ASSEMBLY – Wing, rear, left 1 22-2378, 22-2425 to 22-7642 inclusive 558.39
U14399-003 SPAR ASSEMBLY – Wing, rear, right 1 22-2378, 22-2425 to 22-7642 inclusive 558.39
U14399-006 SPAR ASSEMBLY – Wing, rear, left 1 22-8000 and up 558.39
U14399-007 SPAR ASSEMBLY – Wing, rear, right 1 22-8000 and up 558.39
-156 U11753-002 SPAR ASSEMBLY – Wing, front, LH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 671.69
inclusive
U11753-007 SPAR ASSEMBLY – Wing, front, RH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 671.69
inclusive
U14398-002 SPAR ASSEMBLY – Wing, front, left 1 22-2378, 22-2425 and up 579.9
U14398-003 SPAR ASSEMBLY – Wing, front, right 1 22-2378, 22-2425 and up 579.9
-157 -80122-007 B WASHER – Flap push pull rod attachment, at bellcrank 4 6.11
-158 U1228-05 DE RIB ASSEMBLY – No. 2, No. 3, No. 4, right wing only 3 130.24
-159 15131-00 E RIB ASSEMBLY – Aileron, inboard, left 1 NM!
15131-01 E RIB ASSEMBLY – Aileron, inboard, right 1 NM!
-160 U12252-008 E CHANNEL – Brace 1 15.29
-161 U1224-00 CE RIB ASSEMBLY 1 157.44
-162 12252-13 E CHANNEL – Brace 1 NM!
-163 12820-03 E TRAILING EDGE ASSEMBLY 1 NM!
-164 U1224-00 CE RIB ASSEMBLY 1 157.44
X

A – “150” wing panels used on PA-22 airplanes with serial numbers
22-2600 and 22-2601.
B – Not used on PA-22-108.
C – Used when auxiliary fuel system is installed on PA-22-108.
D – Used when auxiliary fuel system is not installed.
E – Used on PA-22-108 only.

19
