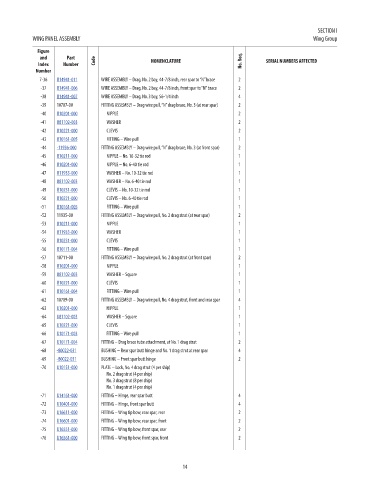

Page 26 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
7-36 U14941-011 WIRE ASSEMBLY – Drag, No. 2 bay, 44-7/8 inch, rear spar to “N” brace 2 110.13
-37 U14941-006 WIRE ASSEMBLY – Drag, No. 2 bay, 44-7/8 inch, front spar to “N” brace 2 30.27
-38 U14941-007 WIRE ASSEMBLY – Drag, No. 3 bay, 56-1/4 inch 4 33.6
-39 10707-00 FITTING ASSEMBLY – Drag wire pull, “N” drag brace, No. 3 (at rear spar) 2 NM!
-40 U10201-000 NIPPLE 2 11.74
-41 U81102-003 WASHER 2 4.58
-42 U10221-000 CLEVIS 2 17.72
-43 U10161-005 FITTING – Wire pull 1 15.64
-44 -11936-000 FITTING ASSEMBLY – Drag wire pull, “N” drag brace, No. 3 (at front spar) 2 201.58
-45 U10211-000 NIPPLE – No. 10-32 tie rod 1 45.26
-46 U10201-000 NIPPLE – No. 6-40 tie rod 1 11.74
-47 U11933-000 WASHER – No. 10-32 tie rod 1 25.06
-48 U81102-003 WASHER – No. 6-40 tie rod 1 4.58
-49 U10231-000 CLEVIS – No. 10-32 tie rod 1 52.51
-50 U10221-000 CLEVIS – No. 6-40 tie rod 1 17.72
-51 U10161-005 FITTING – Wire pull 1 15.64
-52 11935-00 FITTING ASSEMBLY – Drag wire pull, No. 2 drag strut (at rear spar) 2 NM!
-53 U10211-000 NIPPLE 1 45.26
-54 U11933-000 WASHER 1 25.06
-55 U10231-000 CLEVIS 1 52.51
-56 U10171-004 FITTING – Wire pull 1 7.28
-57 10711-00 FITTING ASSEMBLY – Drag wire pull, No. 2 drag strut (at front spar) 2 NM!
-58 U10201-000 NIPPLE 1 11.74
-59 U81102-003 WASHER – Square 1 4.58
-60 U10221-000 CLEVIS 1 17.72
-61 U10161-004 FITTING – Wire pull 1 15.64
-62 10709-00 FITTING ASSEMBLY – Drag wire pull, No. 4 drag strut, front and rear spar 4 NM!
-63 U10201-000 NIPPLE 1 11.74
-64 U81102-003 WASHER – Square 1 4.58
-65 U10221-000 CLEVIS 1 17.72
-66 U10171-003 FITTING – Wire pull 1 7.28
-67 U10171-004 FITTING – Drag brace tube attachment, at No. 1 drag strut 2 7.28
-68 -80022-031 BUSHING – Rear spar butt hinge and No. 1 drag strut at rear spar 4 11.84
-69 -80022-031 BUSHING – Front spar butt hinge 2 11.84
-70 U10151-000 PLATE – Lock, No. 4 drag strut (4 per ship) 3.08
No. 2 drag strut (4 per ship)
No. 3 drag strut (8 per ship)
No. 1 drag strut (4 per ship)
-71 U14161-000 FITTING – Hinge, rear spar butt 4 36.24
-72 U10401-000 FITTING – Hinge, front spar butt 4 45.84
-73 U16611-000 FITTING – Wing tip bow, rear spar, rear 2 11.9
-74 U16601-000 FITTING – Wing tip bow, rear spar, front 2 17.16
-75 U16551-000 FITTING – Wing tip bow, front spar, rear 2 21.32
-76 U16561-000 FITTING – Wing tip bow, front spar, front 2 17

14
