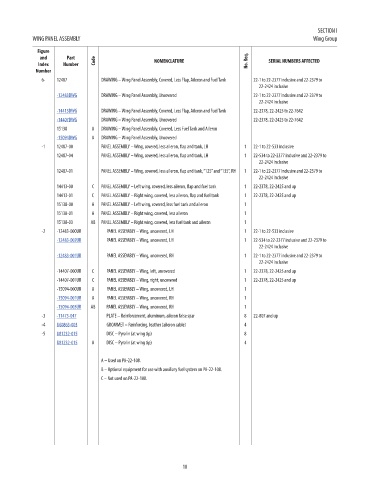

Page 22 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
6- 12487 DRAWING – Wing Panel Assembly, Covered, Less Flap, Aileron and Fuel Tank 22-1 to 22-2377 inclusive and 22-2379 to NM!
22-2424 inclusive
-12483DWG DRAWING – Wing Panel Assembly, Uncovered 22-1 to 22-2377 inclusive and 22-2379 to 65.97
22-2424 inclusive
-14413DWG DRAWING – Wing Panel Assembly, Covered, Less Flap, Aileron and Fuel Tank 22-2378, 22-2425 to 22-7642 65.97
-14407DWG DRAWING – Wing Panel Assembly, Uncovered 22-2378, 22-2425 to 22-7642 65.97
15138 A DRAWING – Wing Panel Assembly, Covered, Less Fuel Tank and Aileron NM!
-15094DWG A DRAWING – Wing Panel Assembly, Uncovered 65.97
-1 12487-00 PANEL ASSEMBLY – Wing, covered, less aileron, flap and tank, LH 1 22-1 to 22-533 inclusive NM!
12487-04 PANEL ASSEMBLY – Wing, covered, less aileron, flap and tank, LH 1 22-534 to 22-2377 inclusive and 22-2379 to NM!
22-2424 inclusive
12487-01 PANEL ASSEMBLY – Wing, covered, less aileron, flap and tank, “125” and “135”, RH 1 22-1 to 22-2377 inclusive and 22-2379 to NM!
22-2424 inclusive
14413-00 C PANEL ASSEMBLY – Left wing, covered, less aileron, flap and fuel tank 1 22-2378, 22-2425 and up NM!
14413-01 C PANEL ASSEMBLY – Right wing, covered, less aileron, flap and fuel tank 1 22-2378, 22-2425 and up NM!
15138-00 A PANEL ASSEMBLY – Left wing, covered, less fuel tank and aileron 1 NM!
15138-01 A PANEL ASSEMBLY – Right wing, covered, less aileron 1 NM!
15138-03 AB PANEL ASSEMBLY – Right wing, covered, less fuel tank and aileron 1 NM!
-2 -12483-000UR PANEL ASSEMBLY – Wing, uncovered, LH 1 22-1 to 22-533 inclusive NM!
-12483-002UR PANEL ASSEMBLY – Wing, uncovered, LH 1 22-534 to 22-2377 inclusive and 22-2379 to 11501.86
22-2424 inclusive
-12483-001UR PANEL ASSEMBLY – Wing, uncovered, RH 1 22-1 to 22-2377 inclusive and 22-2379 to 11270.82
22-2424 inclusive
-14407-000UR C PANEL ASSEMBLY – Wing, left, uncovered 1 22-2378, 22-2425 and up NM!
-14407-001UR C PANEL ASSEMBLY – Wing, right, uncovered 1 22-2378, 22-2425 and up NM!
-15094-000UR A PANEL ASSEMBLY – Wing, uncovered, LH 1 NM!
-15094-001UR A PANEL ASSEMBLY – Wing, uncovered, RH 1 11270.82
-15094-003UR AB PANEL ASSEMBLY – Wing, uncovered, RH 1 11501.86
-3 -11473-047 PLATE – Reinforcement, aluminum, aileron false spar 8 22-807 and up 13.07
-4 U60863-003 GROMMET – Reinforcing, leather (aileron cable) 4 4.14
-5 U81232-015 DISC – Pyralin (at wing tip) 8 2.2
U81232-015 A DISC – Pyralin (at wing tip) 4 2.2

A – Used on PA-22-108.
B – Optional equipment for use with auxiliary fuel system on PA-22-108.
C – Not used on PA-22-108.

10
