SECTION I
AILERON INSTALLATION Wing Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
4-1 12475-00 AILERON ASSEMBLY – Covered, LH 1 NM!
12475-01 AILERON ASSEMBLY – Covered, RH 1 NM!
-2 U12468-000 AILERON ASSEMBLY – Uncovered, LH 1 1774.17
U12468-001 AILERON ASSEMBLY – Uncovered, RH 1 1774.17
-3 U41881-000 HINGE – Outboard 1 82.71
-4 U12454-000 HORN ASSEMBLY 1 504.41
-4a U42933-003 EDGE ASSEMBLY – Aileron, outboard trailing 1 88.42
-5 U80122-053 GROMMET – Drain 6 4.09
-6 MS20392-3C41 PIN – (AN394-41) 4 1.6
-7 U80122-086 WASHER 8 2.46
-8 AN380-2-2 PIN – Cotter 4 0.04
4
4A
5
7 2
8 1
6 3
7
8
6

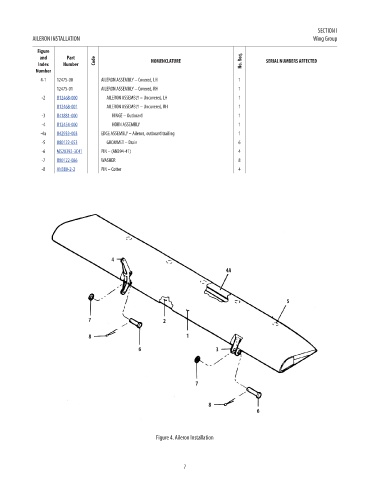

Figure 4. Aileron Installation
7
