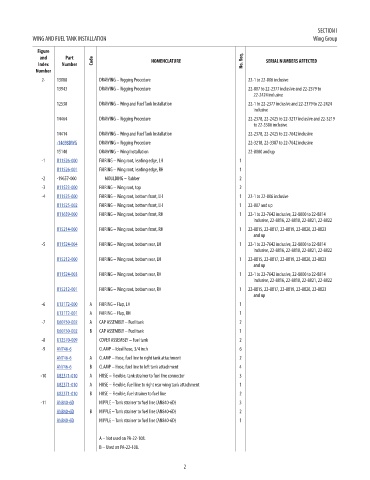

Page 14 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION I
WING AND FUEL TANK INSTALLATION Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
2- 13088 DRAWING – Rigging Procedure 22-1 to 22-806 inclusive
13943 DRAWING – Rigging Procedure 22-807 to 22-2377 inclusive and 22-2379 to NM!
22-2424 inclusive
12538 DRAWING – Wing and Fuel Tank Installation 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14464 DRAWING – Rigging Procedure 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 NM!
to 22-3386 inclusive
14414 DRAWING – Wing and Fuel Tank Installation 22-2378, 22-2425 to 22-7642 inclusive NM!
-14698DWG DRAWING – Rigging Procedure 22-3218, 22-3387 to 22-7642 inclusive 39.58
15140 DRAWING – Wing Installation 22-8000 and up NM!
-1 U11526-000 FAIRING – Wing root, leading edge, LH 1 95.37
U11526-001 FAIRING – Wing root, leading edge, RH 1 95.37
-2 -19657-000 MOULDING – Rubber 2 NM!
-3 U11523-000 FAIRING – Wing root, top 2 80.72
-4 U11525-000 FAIRING – Wing root, bottom front, LH 1 22-1 to 22-806 inclusive 71.83
U11525-002 FAIRING – Wing root, bottom front, LH 1 22-807 and up 71.83
U11659-000 FAIRING – Wing root, bottom front, RH 1 22-1 to 22-7642 inclusive, 22-8000 to 22-8814 35.27
inclusive, 22-8816, 22-8818, 22-8821, 22-8822
U15214-000 FAIRING – Wing root, bottom front, RH 1 22-8815, 22-8817, 22-8819, 22-8820, 22-8823 34.44
and up
-5 U11524-004 FAIRING – Wing root, bottom rear, LH 1 22-1 to 22-7642 inclusive, 22-8000 to 22-8814 75.53
inclusive, 22-8816, 22-8818, 22-8821, 22-8822
U15212-000 FAIRING – Wing root, bottom rear, LH 1 22-8815, 22-8817, 22-8819, 22-8820, 22-8823 87.19
and up
U11524-003 FAIRING – Wing root, bottom rear, RH 1 22-1 to 22-7642 inclusive, 22-8000 to 22-8814 75.53
inclusive, 22-8816, 22-8818, 22-8821, 22-8822
U15212-001 FAIRING – Wing root, bottom rear, RH 1 22-8815, 22-8817, 22-8819, 22-8820, 22-8823 87.19
and up
-6 U13172-000 A FAIRING – Flap, LH 1 79.31
U13172-001 A FAIRING – Flap, RH 1 79.31
-7 U60750-002 A CAP ASSEMBLY – Fuel tank 2 129.32
U60750-002 B CAP ASSEMBLY – Fuel tank 1 129.32
-8 U12570-009 COVER ASSEMBLY – Fuel tank 2 331.9
-9 AN746-6 CLAMP – Ideal hose, 3/4 inch 6 1.79
AN746-6 A CLAMP – Hose, fuel line to right tank attachment 2 1.79
AN746-6 B CLAMP – Hose, fuel line to left tank attachment 4 1.79
-10 U82371-010 A HOSE – Flexible, tank strainer to fuel line connector 3 23.8
U82371-010 A HOSE – Flexible, fuel line to right rear wing tank attachment 1 23.8
U82371-010 B HOSE – Flexible, fuel strainer to fuel line 2 23.8
-11 AN840-6D NIPPLE – Tank strainer to fuel line (AN840-6D) 3 11.96
AN840-6D B NIPPLE – Tank strainer to fuel line (AN840-6D) 2 11.96
AN840-6D NIPPLE – Tank strainer to fuel line (AN840-6D) 1 11.96

A – Not used on PA-22-108.
B – Used on PA-22-108.
