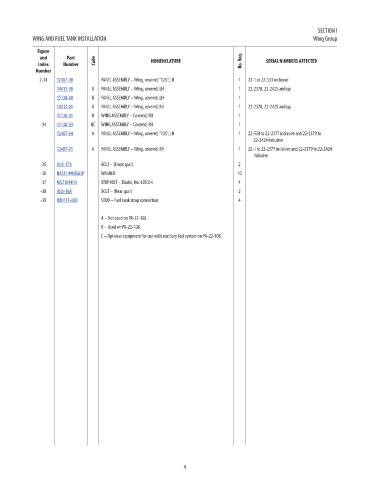

Page 16 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog
P. 16
SECTION I
WING AND FUEL TANK INSTALLATION Wing Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
2-34 12487-00 PANEL ASSEMBLY – Wing, covered, “125”, LH 1 22-1 to 22-533 inclusive NM!
14413-00 A PANEL ASSEMBLY – Wing, covered, LH 1 22-2378, 22-2425 and up NM!
15138-00 B PANEL ASSEMBLY – Wing, covered, LH 1 NM!
14413-01 A PANEL ASSEMBLY – Wing, covered, RH 1 22-2378, 22-2425 and up NM!
15138-01 B WING ASSEMBLY – Covered, RH 1 NM!
-34 15138-03 BC WING ASSEMBLY – Covered, RH 1 NM!
12487-04 A PANEL ASSEMBLY – Wing, covered, “135”, LH 1 22-534 to 22-2377 inclusive and 22-2379 to NM!
22-2424 inclusive
12487-01 A PANEL ASSEMBLY – Wing, covered, RH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
-35 AN5-17A BOLT – (Front spar) 2 0.78
-36 NAS1149F0563P WASHER 10 0.08
-37 MS21044N5 STOP NUT – Elastic, No. 42E054 4 0.4
-38 AN5-16A BOLT – (Rear spar) 2 0.76
-39 U80111-000 STUD – Fuel tank strap connection 4 21.47
A – Not used on PA-22-108.
B – Used on PA-22-108.
C – Optional equipment for use with auxiliary fuel system on PA-22-108.
4
