Page 20 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog
P. 20
SECTION I
FLAP INSTALLATION Wing Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
5-1 12484-00 FLAP ASSEMBLY – Covered, LH 1 NM!
12484-01 FLAP ASSEMBLY – Covered, RH 1 NM!
-2 U12469-000 FLAP ASSEMBLY – Uncovered, LH 1 1384.48
U12469-001 FLAP ASSEMBLY – Uncovered, RH 1 1384.48
-3 U41881-002 HINGE – Outboard 1 111.53
-4 U11682-000 HINGE – Inboard 1 244.8
-5 U80122-053 GROMMET – Drain 6 4.09
-6 MS20392-3C41 PIN 4 1.6
-7 U85012-010 WASHER 4 5.64
-8 AN380-2-2 PIN 4 0.04
-9 NAS1149F0463P WASHER 4 0.06
-10 AN3-12A BOLT 2 0.16
-11 NAS1149F0363P WASHER 2 0.04
-12 MS21044N3 STOP NUT – Elastic, No. 22M02 2 0.24
-13 U80122-086 WASHER 4 2.46
4
12
11
9 3
10 2 5
1
8 13
6 7
8
6

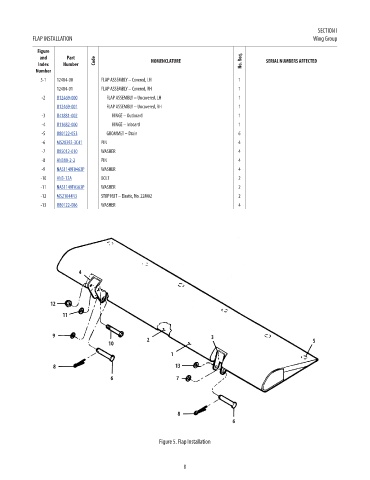

Figure 5. Flap Installation
8
