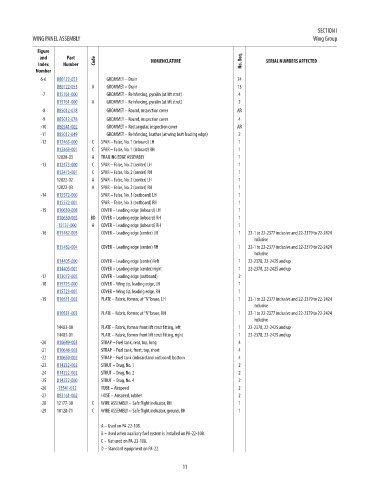

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
6-6 U80122-053 GROMMET – Drain 24 4.09
U80122-053 A GROMMET – Drain 13 4.09
-7 U15761-000 GROMMET – Reinforcing, pyralin (at lift strut) 4 8.71
U15761-000 A GROMMET – Reinforcing, pyralin (at lift strut) 2 8.71
-8 U85012-078 GROMMET – Round, inspection cover AR 8.99
-9 U85012-078 GROMMET – Round, inspection cover 4 8.99
-10 U80541-002 GROMMET – Rectangular, inspection cover AR 14.81
-11 U85012-049 GROMMET – Reinforcing, leather (at wing butt leading edge) 2 5.1
-12 U12463-000 C SPAR – False, No. 1 (inboard) LH 1 296.54
U12463-001 C SPAR – False, No. 1 (inboard) RH 1 260.24
12820-03 A TRAILING EDGE ASSEMBLY 1 NM!
-13 U12473-000 C SPAR – False, No. 2 (center) LH 1 91.18
U12473-001 C SPAR – False, No. 2 (center) RH 1 97.19
12822-02 A SPAR – False, No. 2 (center) LH 1 NM!
12822-03 A SPAR – False, No. 2 (center) RH 1 NM!
-14 U15572-000 SPAR – False, No. 3 (outboard) LH 1 65.98
U15572-001 SPAR – False, No. 3 (outboard) RH 1 57.54
-15 U10630-008 COVER – Leading edge (inboard) LH 1 137.46
U10630-005 BD COVER – Leading edge (inboard) RH 1 149.05
-15137-000 A COVER – Leading edge (inboard) RH 1 135.18
-16 U15482-005 COVER – Leading edge (center) LH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 241.38
inclusive
U15482-004 COVER – Leading edge (center) RH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 241.38
inclusive
U14405-000 COVER – Leading edge (center) left 1 22-2378, 22-2425 and up 234.44
U14405-001 COVER – Leading edge (center) right 1 22-2378, 22-2425 and up 234.44
-17 U13072-005 COVER – Leading edge (outboard) 2 64.68
-18 U15723-000 COVER – Wing tip, leading edge, LH 1 252.99
U15723-001 COVER – Wing tip, leading edge, RH 1 258.71
-19 U10531-002 PLATE – Fabric, former, at “N” brace, LH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 65.39
inclusive
U10531-003 PLATE – Fabric, former, at “N” brace, RH 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 84.4
inclusive
14403-00 PLATE – Fabric, former front lift strut fitting, left 1 22-2378, 22-2425 and up NM!
14403-01 PLATE – Fabric, former front lift strut fitting, right 1 22-2378, 22-2425 and up NM!
-20 U10649-003 STRAP – Fuel tank, rear, top, long 4 78.95
-21 U10648-003 STRAP – Fuel tank, front, top, short 4 51.95
-22 U10650-002 STRAP – Fuel tank (inboard and outboard) bottom 4 69.82
-23 U14232-002 STRUT – Drag, No. 1 2 157.87
-24 U14222-002 STRUT – Drag, No. 2 2 155.77
-25 U14222-000 STRUT – Drag, No. 4 2 154.61
-26 -13541-012 TUBE – Airspeed 2 59.69
-27 U83161-002 HOSE – Airspeed, rubber 2 5.91
-28 12177-38 C WIRE ASSEMBLY – Safe flight indicator, RH 1 NM!
-29 10128-71 C WIRE ASSEMBLY – Safe flight indicator, ground, RH 1 NM!

A – Used on PA-22-108.
B – Used when auxiliary fuel system is installed on PA-22-108.
C – Nut used on PA-22-108.
D – Standard equipment on PA-22.
