P. 27

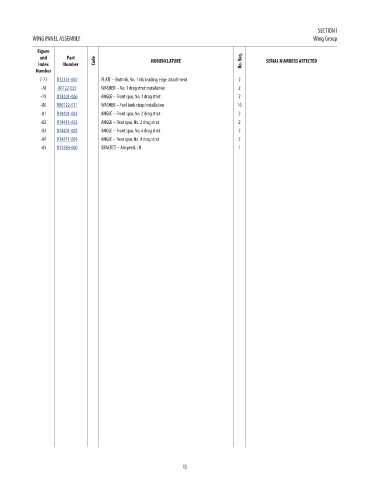

SECTION I
WING PANEL ASSEMBLY Wing Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
7-77 U12331-002 PLATE – Butt rib, No. 1 rib, leading edge attachment 2 5.58
-78 -80122-025 WASHER – No. 1 drag strut installation 2 6.92
-79 U14401-006 ANGLE – Front spar, No. 1 drag strut 2 10.66
-80 U80122-011 WASHER – Fuel tank strap installation 16 1.13
-81 U14401-003 ANGLE – Front spar, No. 2 drag strut 2 13.8
-82 U14411-002 ANGLE – Rear spar, No. 2 drag strut 2 13.65
-83 U14401-005 ANGLE – Front spar, No. 4 drag strut 2 18.48
-84 U14411-004 ANGLE – Rear spar, No. 4 drag strut 2 12.74
-85 U11580-000 BRACKET – Airspeed, LH 1 18.39
15
