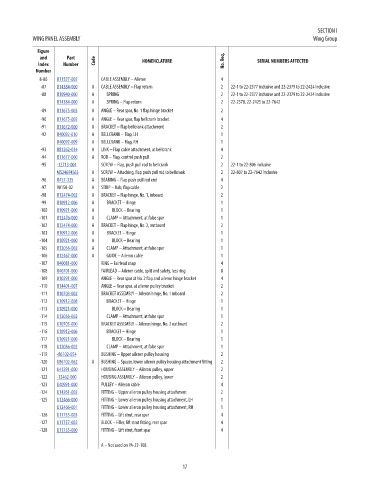

SECTION I
WING PANEL ASSEMBLY Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
8-86 U11527-002 CABLE ASSEMBLY – Aileron 4 157.82
-87 U14384-000 A CABLE ASSEMBLY – Flap return 2 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 inclusive 27.34
-88 U10940-000 A SPRING 2 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 inclusive 33.57
U14384-000 A SPRING – Flap return 2 22-2378, 22-2425 to 22-7642 27.34
-89 U11675-003 A ANGLE – Rear spar, No. 1 flap hinge bracket 2 19.35
-90 U11675-002 A ANGLE – Rear spar, flap bellcrank bracket 4 19.35
-91 U11672-000 A BRACKET – Flap bellcrank attachment 2 66.37
-92 U40092-010 A BELLCRANK – Flap, LH 1 189.43
U40092-009 A BELLCRANK – Flap, RH 1 179.17
-93 U81262-014 A LINK – Flap cable attachment, at bellcrank 4 5.35
-94 U11677-000 A ROD – Flap, control push pull 2 64.77
-95 -12713-004 SCREW – Flap, push pull rod to bellcrank 2 22-1 to 22-806 inclusive 2.65
MS24694S63 A SCREW – Attaching, flap push pull rod to bellcrank 2 22-807 to 22-7642 inclusive 0.24
-96 U452-335 A BEARING – Flap push pull rod end 4 46.92
-97 90150-02 A STRIP – Rub, flap cable 2 NM!
-98 U12474-002 A BRACKET – Flap hinge, No. 1, inboard 2 219.18
-99 U10912-006 A BRACKET – Hinge 1 106.33
-100 U10921-000 A BLOCK – Bearing 1 24.98
-101 U12476-000 A CLAMP – Attachment, at false spar 1 14.37
-102 U12474-000 A BRACKET – Flap hinge, No. 2, outboard 2 342.78
-103 U10912-006 A BRACKET – Hinge 1 106.33
-104 U10921-000 A BLOCK – Bearing 1 24.98
-105 U12056-002 A CLAMP – Attachment, at false spar 1 21.35
-106 U12467-000 A GUIDE – Aileron cable 1 96.27
-107 U40081-000 RING – Fairlead snap 4 0.49
-108 U40701-000 FAIRLEAD – Aileron cable, split and safety, less ring 8 1.3
-109 U10291-000 ANGLE – Rear spar at No. 2 flap and aileron hinge bracket 4 23.85
-110 U14401-007 ANGLE – Rear spar, at aileron pulley bracket 2 10.15
-111 U10703-002 BRACKET ASSEMBLY – Aileron hinge, No. 1 inboard 2 142.54
-112 U10912-008 BRACKET – Hinge 1 120.87
-113 U10921-000 BLOCK – Bearing 1 24.98
-114 U12056-002 CLAMP – Attachment, at false spar 1 21.35
-115 U10703-000 BRACKET ASSEMBLY – Aileron hinge, No. 2 outboard 2 153.8
-116 U10912-006 BRACKET – Hinge 1 106.33
-117 U10921-000 BLOCK – Bearing 1 24.98
-118 U12056-002 CLAMP – Attachment, at false spar 1 21.35
-119 -86102-054 BUSHING – Upper aileron pulley housing 2 19.24
-120 U86102-062 A BUSHING – Spacer, lower aileron pulley housing attachment fitting 2 11.81
-121 U41291-000 HOUSING ASSEMBLY – Aileron pulley, upper 2 55.91
-122 -12462-000 HOUSING ASSEMBLY – Aileron pulley, lower 2 94.57
-123 U40991-000 PULLEY – Aileron cable 4 18.31
-124 U14261-002 FITTING – Upper aileron pulley housing attachment 2 79.89
-125 U12466-000 FITTING – Lower aileron pulley housing attachment, LH 1 85.07
U12466-001 FITTING – Lower aileron pulley housing attachment, RH 1 55.65
-126 U11755-003 FITTING – Lift strut, rear spar 4 51.12
-127 U11757-002 BLOCK – Filler, lift strut fitting, rear spar 4 39.69
-128 U11755-000 FITTING – Lift strut, front spar 4 60.6

A – Not used on PA-22-108.

17
